Ypsilon Phaethon integrated Amplifier

Description

Phaethon integrated amplifier is a unique product in many aspects. It uses many of the technical solutions developed in our Aelius monoblock amplifier and PST100mk2 preamplifier in a compact and elegant design.

Phaethon is a hybrid line level amplifier utilizing only three active gain stages two of them with low noise valves operating in single-ended class A fashion, for the input and driver stage. It uses a transformer attenuator build in-house, embedded in the preamplifier section in a novel post attenuation technique.

The tube driver stage is coupled to the output stage with a wide bandwidth inter-stage transformer that provides perfect phase splitting for the output stage.

The output stage combined by same polarity semiconductors for both phases in a “balanced single-ended architecture” offers the flavor of pure single-ended designs with the power of push-pull designs.

There are separate power supplies for the tube and output stage utilizing five power supply inductors for low noise filtering.

All these were designed in to one to operate in unison offering unmatched sound quality, making the platform of the integrated amplifier, a clear advantage.

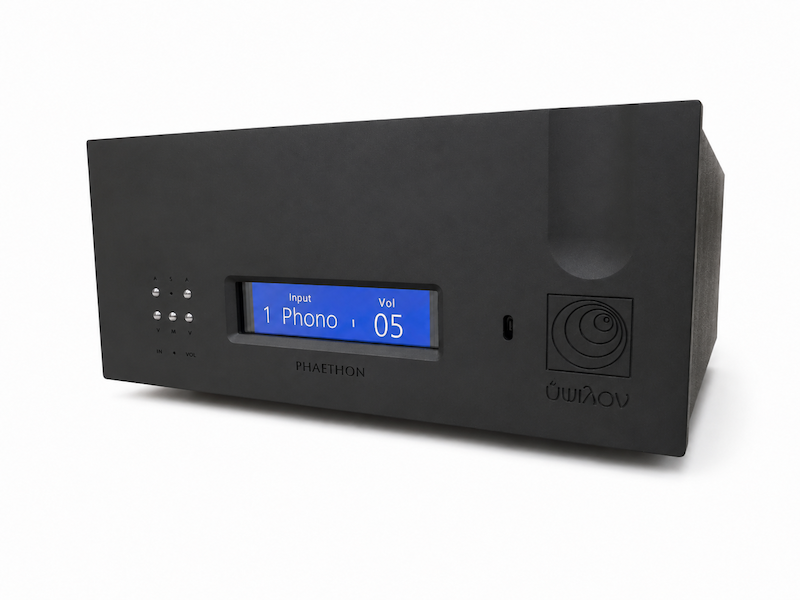

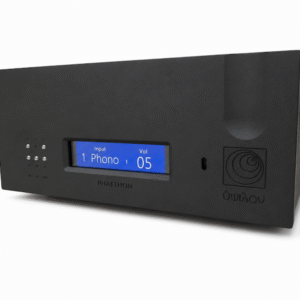

All functions are remote controlled and are visible through a high quality LCD display with large characters so it can be read from across the room.

Phaethon features

• transparent sounding transformer attenuator
• only three gain stages one of them the active preamp stage with tubes
• unique “bridgedsingle-ended” output stage biased in class A for the ‘first most important watts’
• full function remote control

The SE

The YPSILON Phaethon Silver Edition is the flagship evolution of Ypsilon’s already highly regarded Phaethon integrated amplifier. The Silver Edition (SE) takes the original hybrid integrated design and upgrades critical signal-path components with extensive use of pure silver and specially treated transformer materials to push transparency, refinement, and tonal realism even further.

What makes the Silver Edition special is the extensive materials upgrade:

• Pure silver internal wiring
• Pure silver transformer windings
• Special annealed magnetic materials in transformers
• Selected premium resistors and upgraded passive components
