Canor Virtus I2 Integrated Tube Amplifier

The goal of its development was to enhance the superior sound quality of the previous model version. This amplifier runs in a pure class A with an auto-bias function, as well as cathode feedback.

The “Virtus” was a specific virtue in Ancient Rome and it carries connotations of valour, manliness, excellence, courage, character, and worth, perceived as masculine strengths.

Key Qualities

1. Operates in a pure class A with an auto-bias
2. Instant switching between triode and ultra-linear modes
3. Possibility to create a monoblock setup with two units

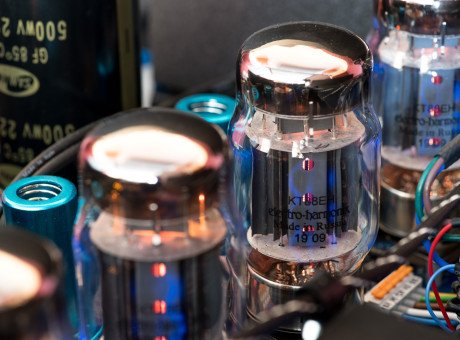

Carefully Chosen Vacuum Tubes

Canor products use only carefully chosen and matched tubes. We subject all tubes to a 200-hour burn-in process and rigorous testing, selection, and pairing to ensure optimal performance.

Power transformer

To eliminate mechanical hum, the transformer core undergoes vacuum impregnation and is encapsulated in a special anti-vibration compound. Furthermore, the transformer is enclosed in a sturdy, welded cover that provides excellent electromagnetic shielding and enhances the signal-to-noise ratio.
To prevent interference from external voltage sources, the primary and secondary windings are separated by a copper foil shield with a 50% overlap.

Monoblock connection

To enhance both performance and sound quality, you can make a monoblock connection of two Virtus I2 units using a data cable. One of the units will function as the “master” while the other will serve as the “slave”. This is referred to as the bridge connection of two amplifiers, which utilizes a fully symmetrical connection.

Voltage Stabilization Circuit

The Canor Virtus I2 features a Voltage Stabilization Circuit (VSC) that constantly monitors the input voltage and switches to the appropriate input transformer winding accordingly. The input transformer has three primary windings – 230V, 240V and 250V. This ensures optimal performance and extends the lifespan of the tubes.

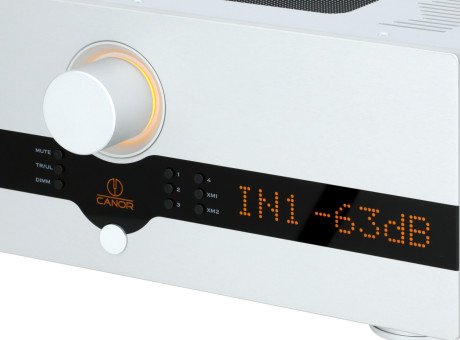

Volume attenuator

The attenuator provides a gain control of 1dB, minimum attenuation of 63 dB. The designed solution demonstrates signal passing through 0 up to 6 relay contacts depending upon volume. The deviation between the sync of the left and right channels of the attenuator is lower than 0.05 dB, this outclasses even the best potentiometers.

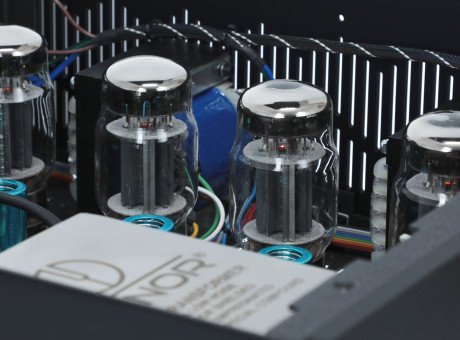

Channel separation

The relay attenuator has two separate blocks for each channel, resulting in even better channel separation. This type of volume control is typically found in more expensive amplifiers but has been proven to be the best option in listening and audible tests.

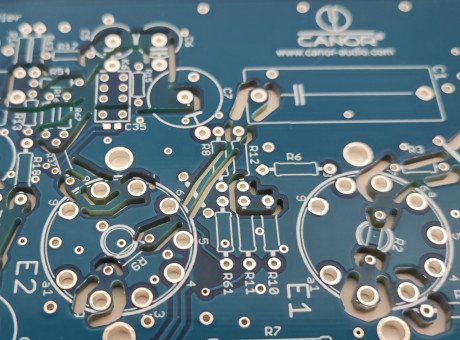

CMT ™ technology

The Virtus I2 utilizes our advanced CMT ™ technology (CANOR ® PCB Milling Technology) for optimal performance. The CMT™ technology allows us to get the dielectric loss factors (loss tangent) of PCB close to the loss factor of air. Thanks to this technology we managed to get repeatedly to the parameter level of the so-called “wire-to-wire connections“.
