The sound of RSA-BW7EX is based on the RSA-777EX, with more expressive power in the mid-low range.
Two key components for BW7

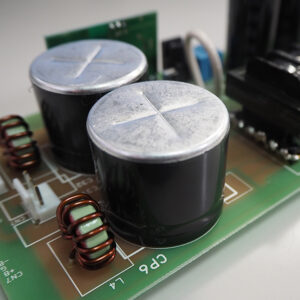

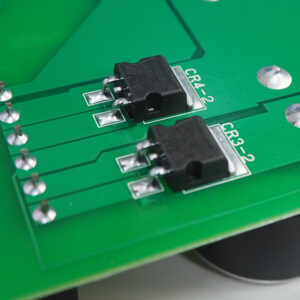

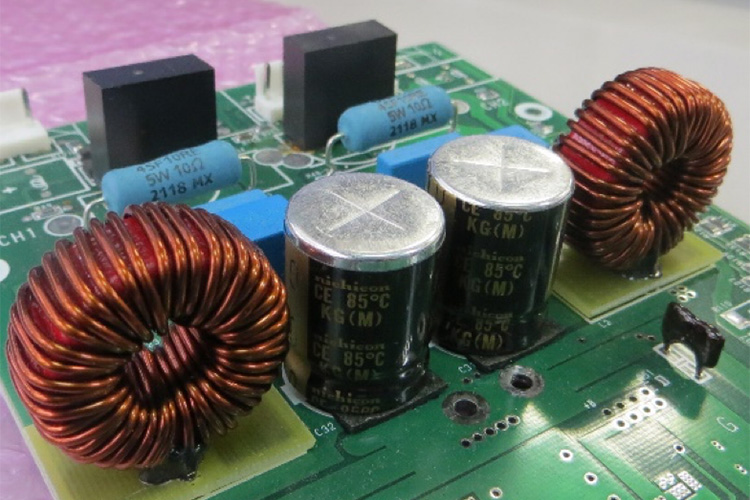

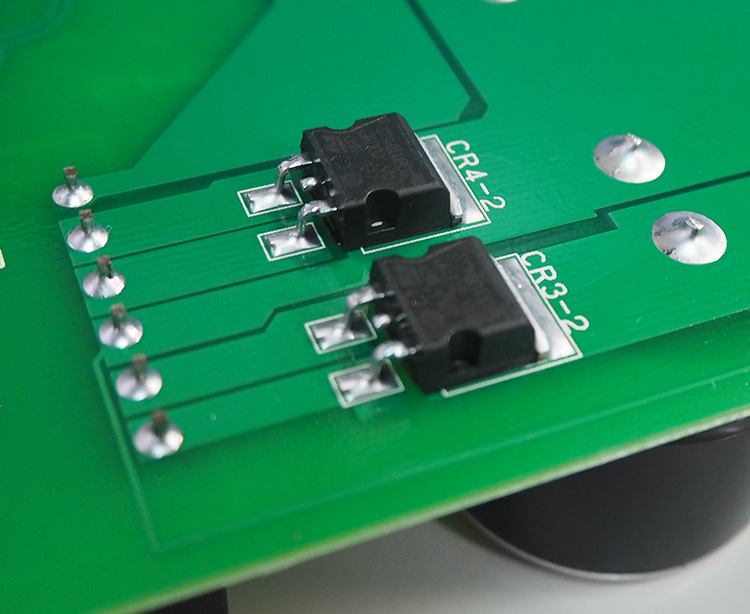

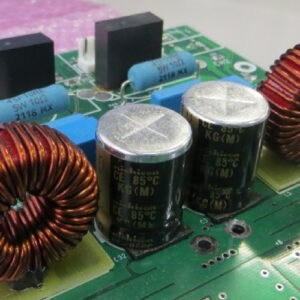

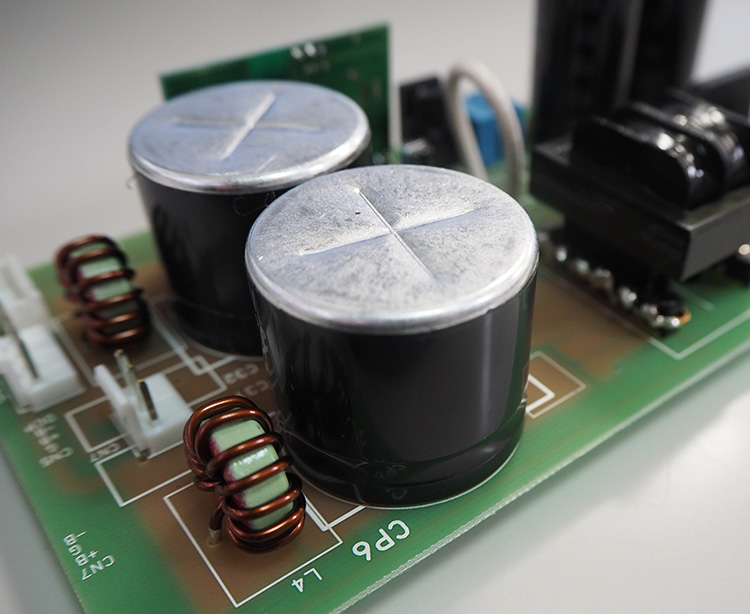

The capacitors developed for the BW7 have excellent properties for low frequency reproduction. The rectifier diodes developed for the BW7 also have an outstanding ability to carry low frequency currents and pass them on to the capacitors. The low frequencies of the BW7 are created and tuned by these two key components.
The rich mid-range and energetic low frequencies, combined with the high-speed sound by the switching power supply, enhance the brilliance of the musical performance and maximize the excitement of listening to music
Specifications RSA-BW7EX
Amplifier
Maximum output
100 W × 2 (4Ω), 75 W × 2 (6Ω), 50 W × 2 (8Ω)
Frequency response
10 Hz – 30 kHz ±1dB (6Ω, 1W)
Harmonic distortion ratio
0.02% (at 1 kHz, 80% output)
Input sensitivity, gain
300 mVrms, 37.3 dB (at MAX volume, 6Ω, 1kHz, unbalanced input)

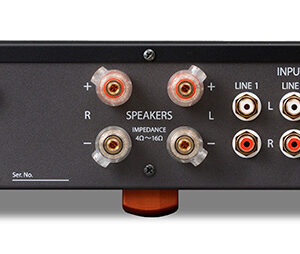

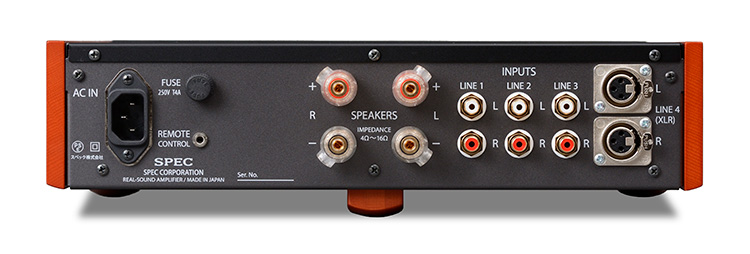

Line input terminals
XLR input : 1 RCA inputs : 3
Speaker terminal
1
Power supply, other
Power voltage
220V AC,50Hz
Electrical consumption
With no signal : 18 W, during maximum output : 180 W (8 Ω, 100 Hz)
External dimensions
350 mm (width) × 95 mm (height) × 375 mm (depth)
Weight
7.0 kg
Included items
Power cord
1
Operation manual
1
