Rockna Audio WAVELIGHT Server
5.200,00 €
The Rockna Audio WAVELIGHT Server (WLS) is an all-in-one audiophile music server designed to partner seamlessly with Wavelight/Wavedream DACs or any DAC with an I2S input. It offers a range of outputs including USB, AES/EBU, SPDIF, and Toslink, and combines a linear power supply, a low-power CPU, custom Linux OS, and an AMD 7 series FPGA for efficient audio management. With 2TB to 16TB of internal storage, three USB ports, and NAS compatibility, it hosts thousands of high-quality music albums.
The key feature is that WAVELIGHT features a powerful control interface accessible via either and iOS/Android app or browser, offering full drive management, upsampling, transcoding, and future-proof updates. It also has Roon support. It is the ultimate all-in-one audiophile music server.
Description
Rockna Audio WAVELIGHT Server – The All-In-One Audiophile Music Server
The Wavelight audiophile music Server – or the WLS – is your perfect source partner for Wavelight/Wavedream dacs, or just any dac, especially if equipped with a I2S input. In addition the I2S output, USB, AES/EBU, SPDIF, and optical output (Toslink) are available.
Wavelight Server Owner’s Manual

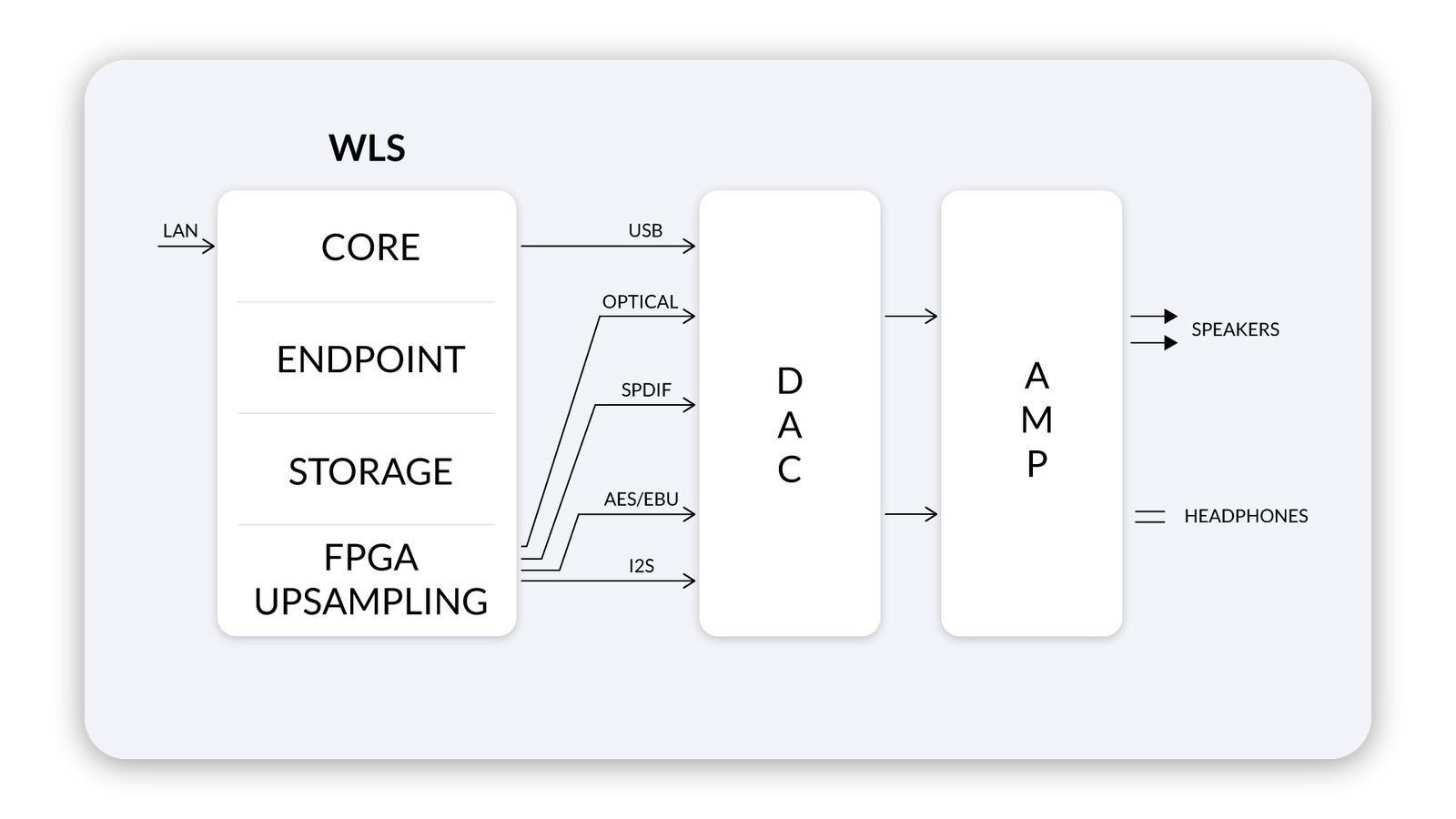

FUNCTIONS AND OUTPUTS
WLS resolves a few important aspects of a modern audio setup. It virtually eliminates the need for a computer holding your core server; will eliminate the need for a strong CPU to perform PCM to DSD transcoding; and eliminate the need for a storage server. All these features are included into a sleek and stylish package, visually matching the Wavelight DAC.
INTERNAL STRUCTURE
Linear PSU, Custom Linux, FPGA Audio
The WLS combines a few key elements for server-based digital audio playback: a linear power supply,a low TDP computing system running custom Linux,a highly efficient FPGA / DSP systemfor audio management.
SOFTWARE AND USER SCENARIOS
DSD 512 Hardware Upsampling, Direct Core Audio
The WLS will manage to transcode between formats on hardware level,without overloading the CPU.Therefore, it’s heat and RFI emissions will stay low, without bad influence on audio circuitry.
The WLS has the ability to let you choose from a variety of server software and audio services including Roon, MPD, LMS and so on. There are many use scenarios, the device can be used as core, or can be used as renderer or endpoint.

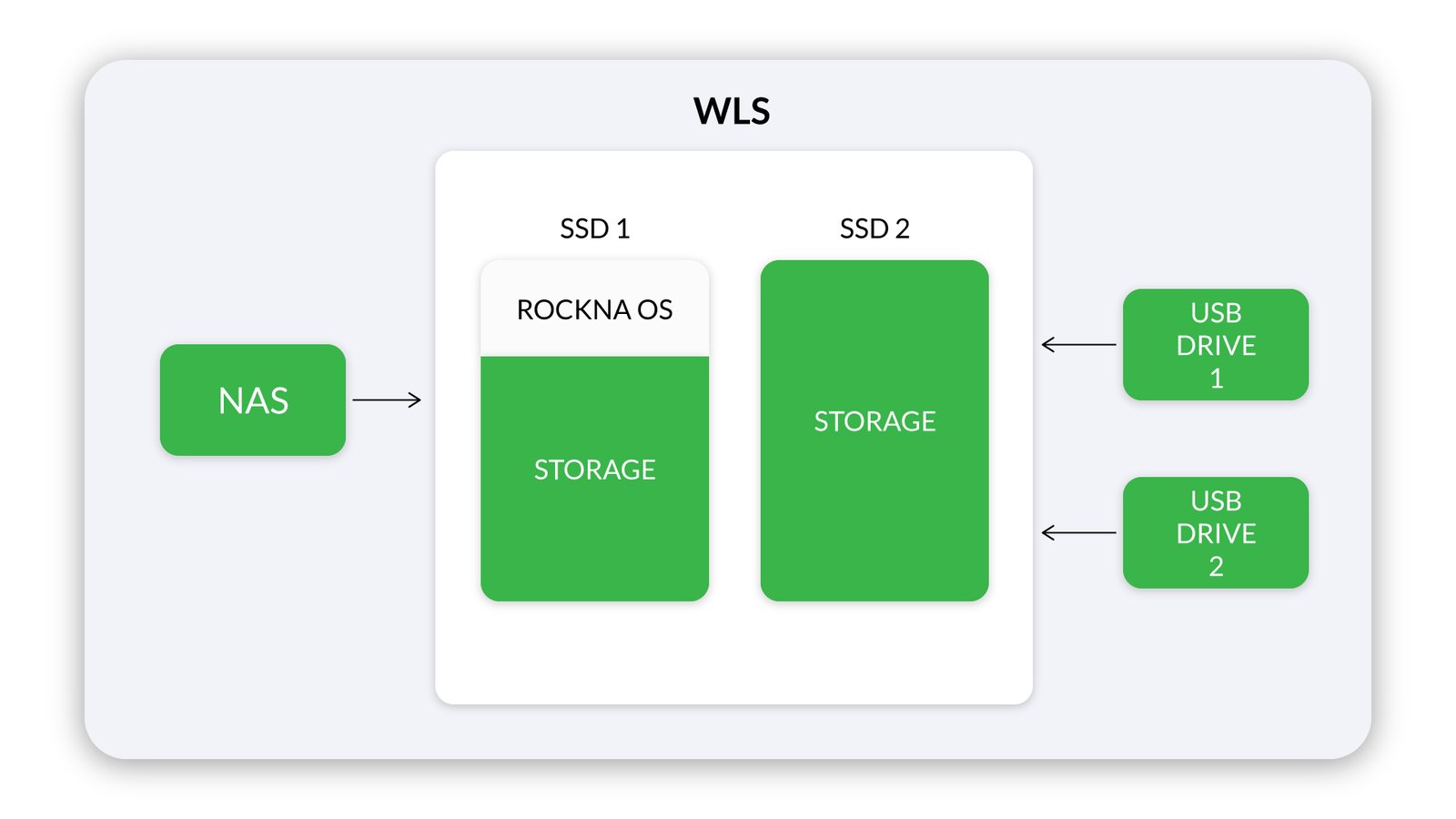

STORAGE
Full Drive Management
Wavelight Server was designed to host your music. From a basic 2TB to a maximum of 16TB of internal storage, it can keep internally thousands of music albums in high-quality, uncompressed format. Additionally, WLS has 3 USB ports, where you can connect external storage, and/or a NAS (Network Attached Storage) can be defined as music source for WLS.
CONTROL INTERFACE
Android App, iOS App, Web Interface
The WLS has a powerful control interface that can be accessed via local browser or control app. It allows the owner to manage internal or attached storage, select active software or services, select upsampling or transcoding parameters, select I2S output setting for DAC compatibility, rip cd’s to local drives, enable room correction etc.
WLS is fully upgradable and future-proof. Both operating system with services and FPGA (audio hardware) can be easily updatable via internet.
Specifications
HARDWARE SPECIFICATIONS
Specifications
Component | Details |
---|---|
Server Side | 2/4 core low power CPU, 8GB RAM, 2TB – 16TB storage |
Audio Engine | AMD 7 series FPGA |
Clock System | 2 x CCHD957 clocks |
Power Supply | Linear, 2 x toroidal transformers |
Outputs | I2S, AES/EBU, SPDIF, TOSLINK, USB (no upsampling on USB) |
Input | Ethernet (LAN) |
SOFTWARE SPECIFICATIONS
Roon Server |
Music Player Daemon (MPD) |
Roon Bridge |
UPnP AV Renderer |
OpenHome Renderer |
HQPlayer NAA |
Airplay Renderer |
LMS core |
CD Ripping |
Room correction software |
Direct streaming services |
Radios |
