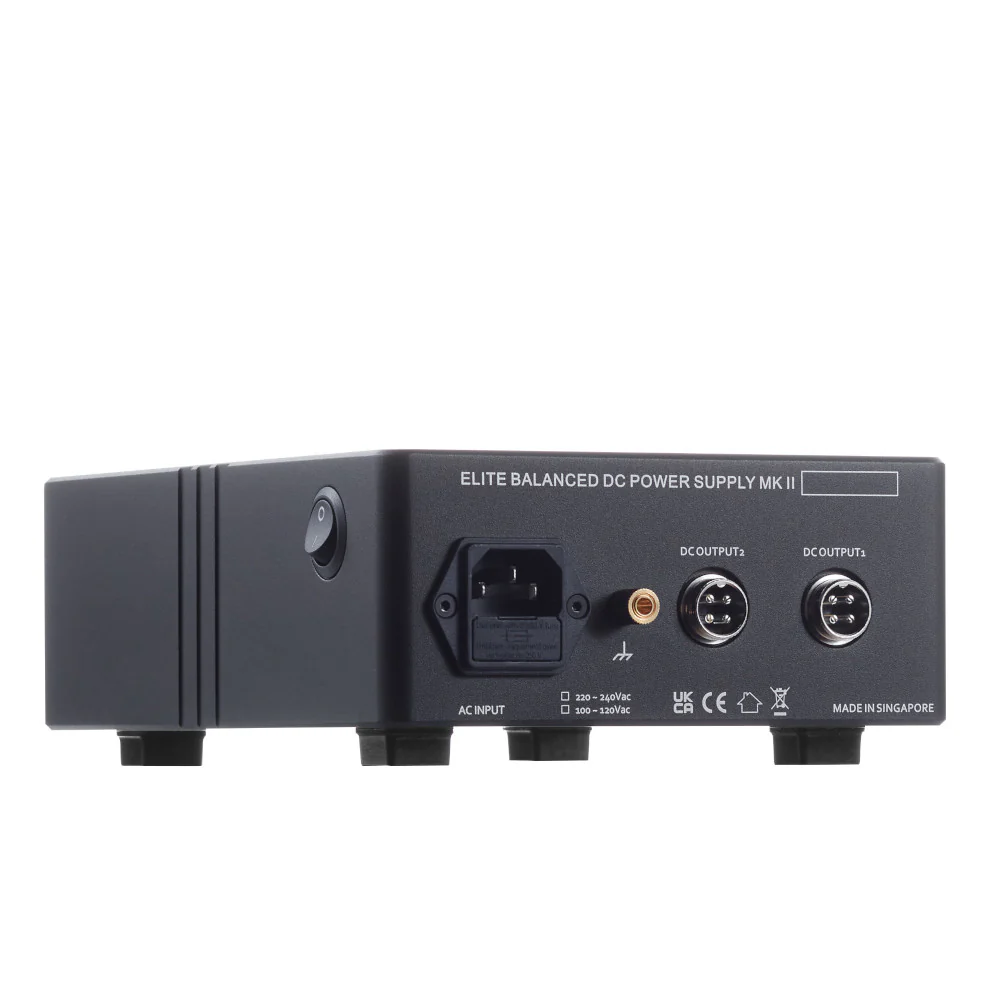

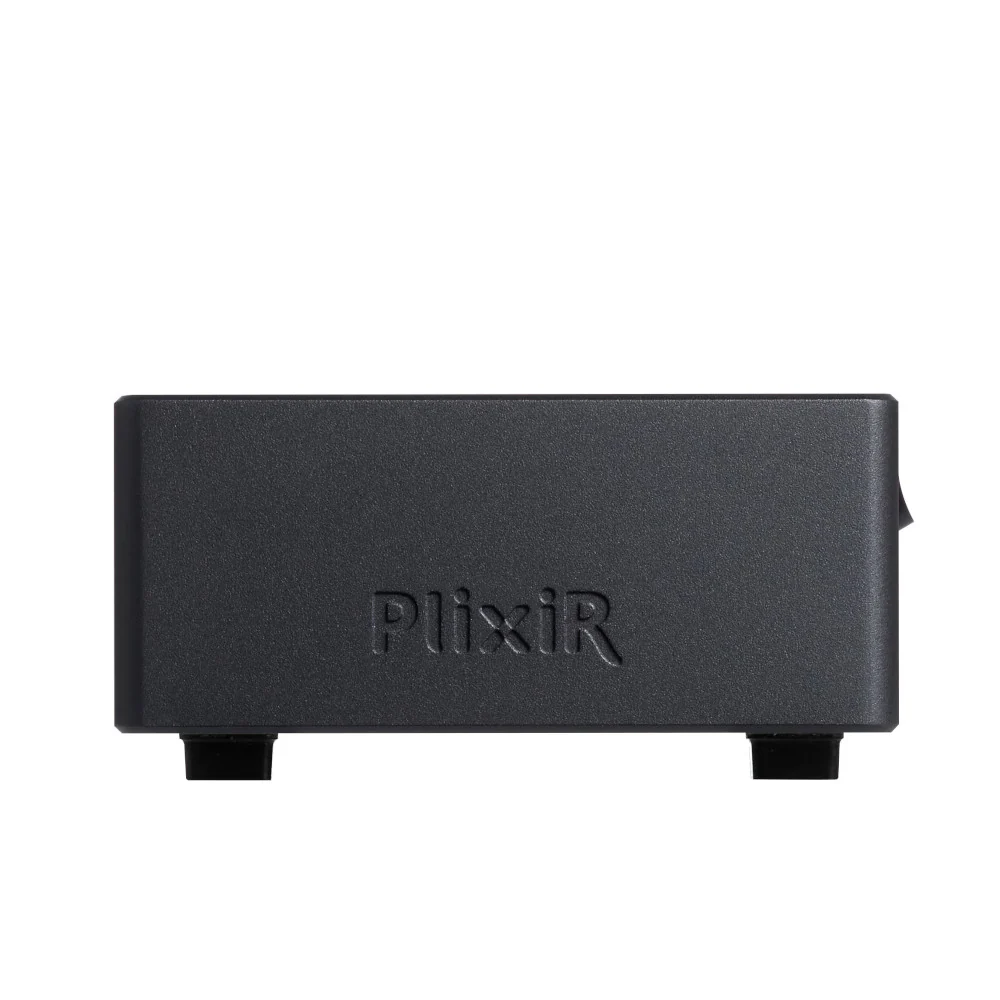

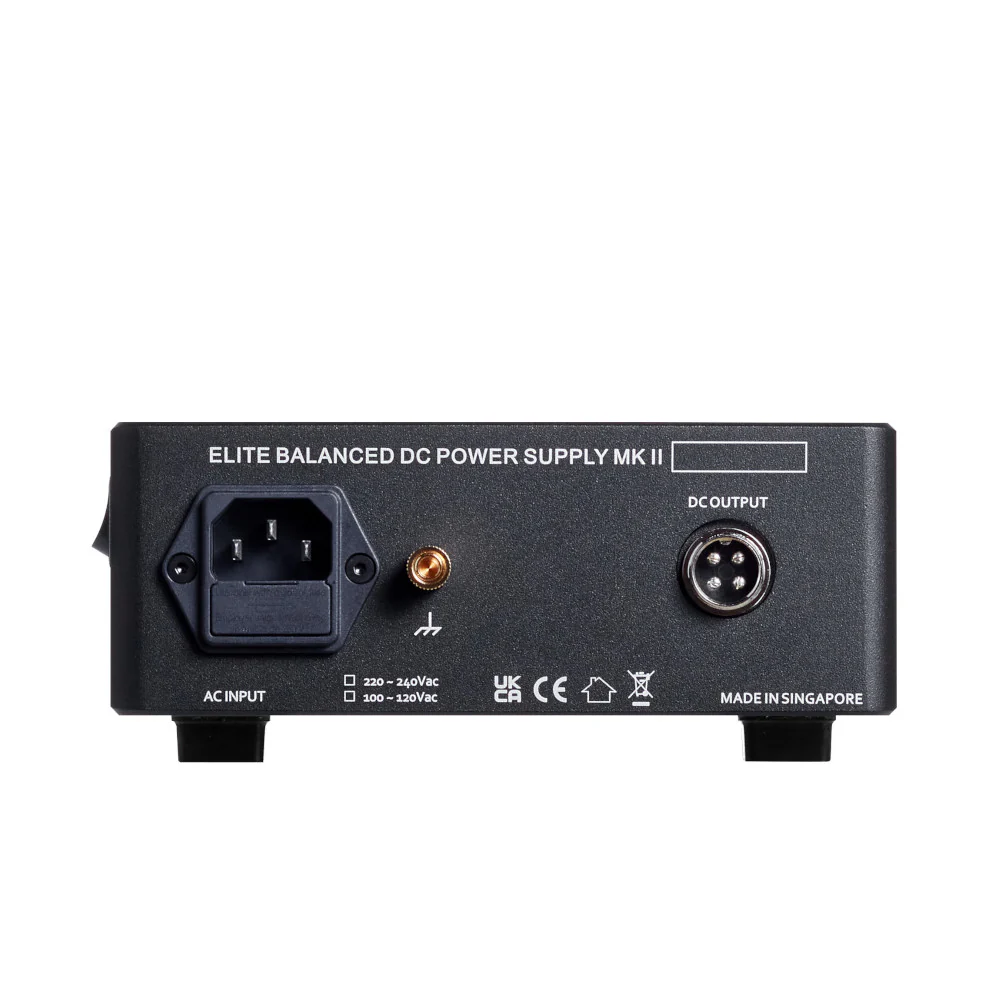

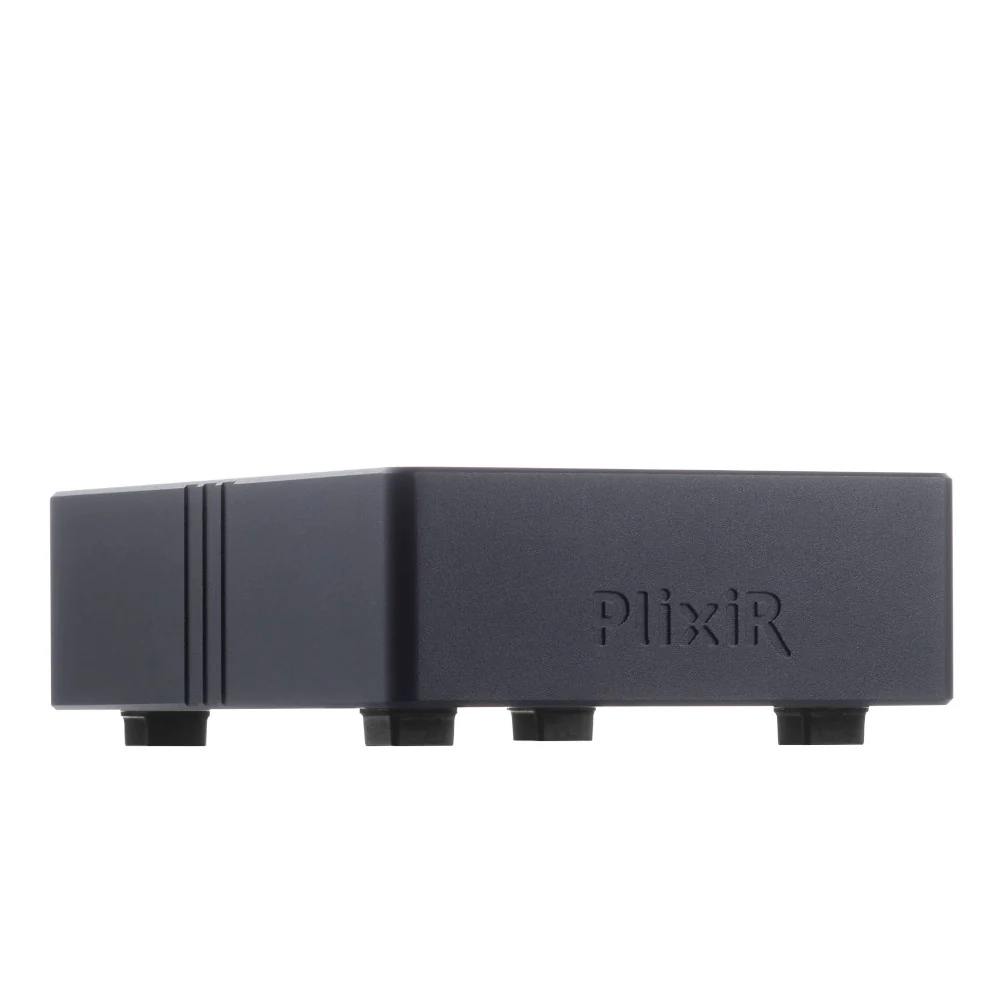

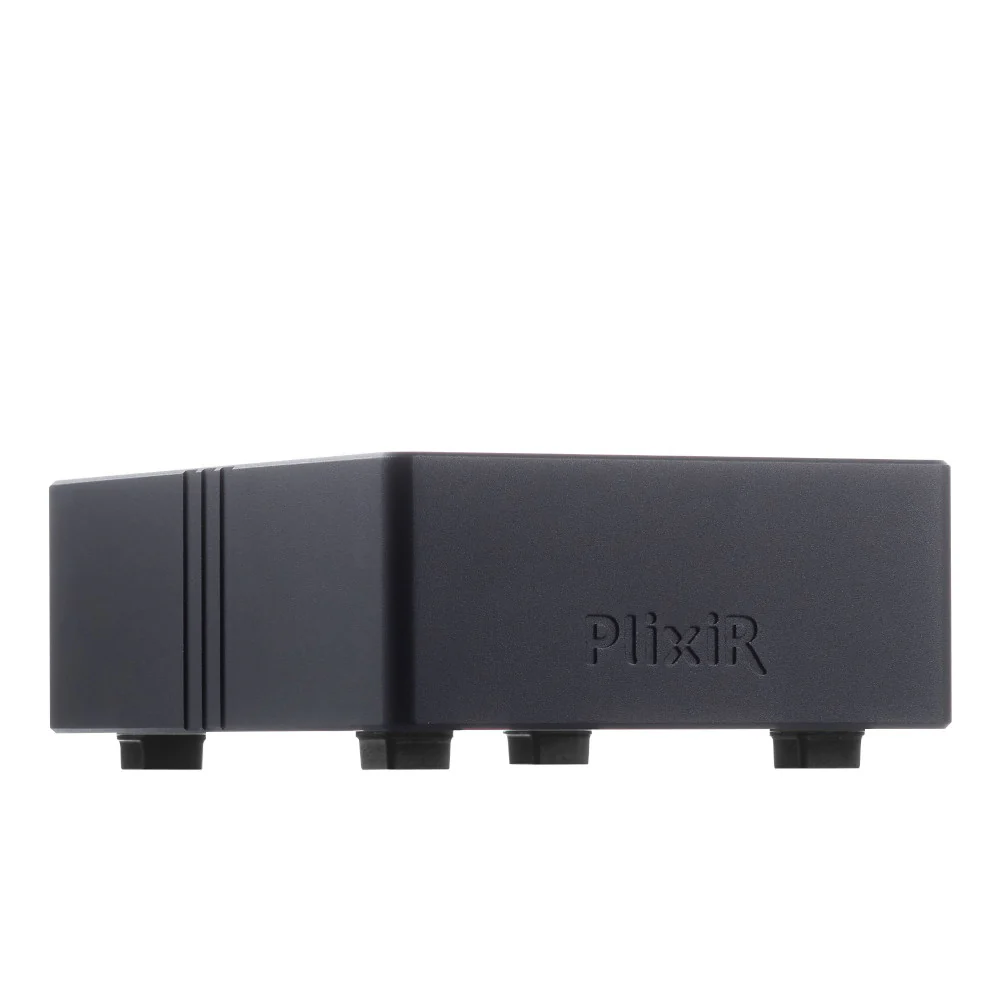

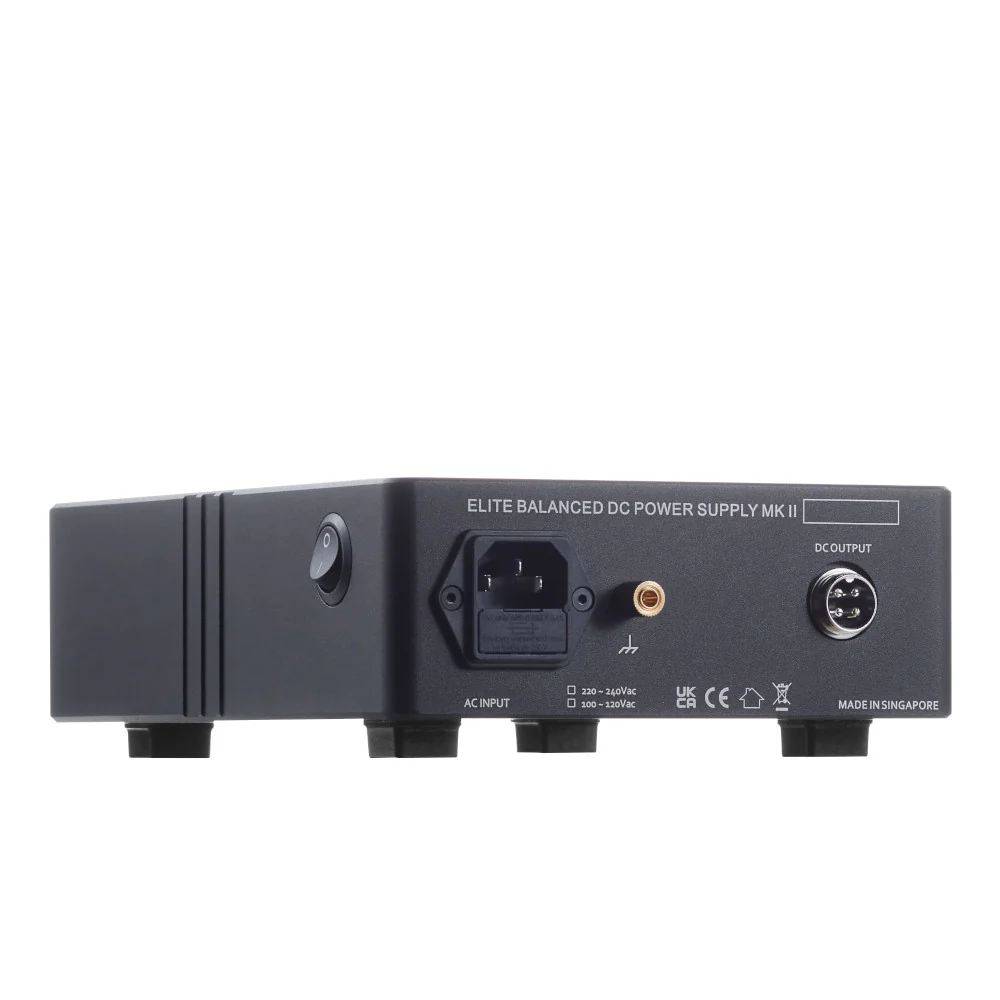

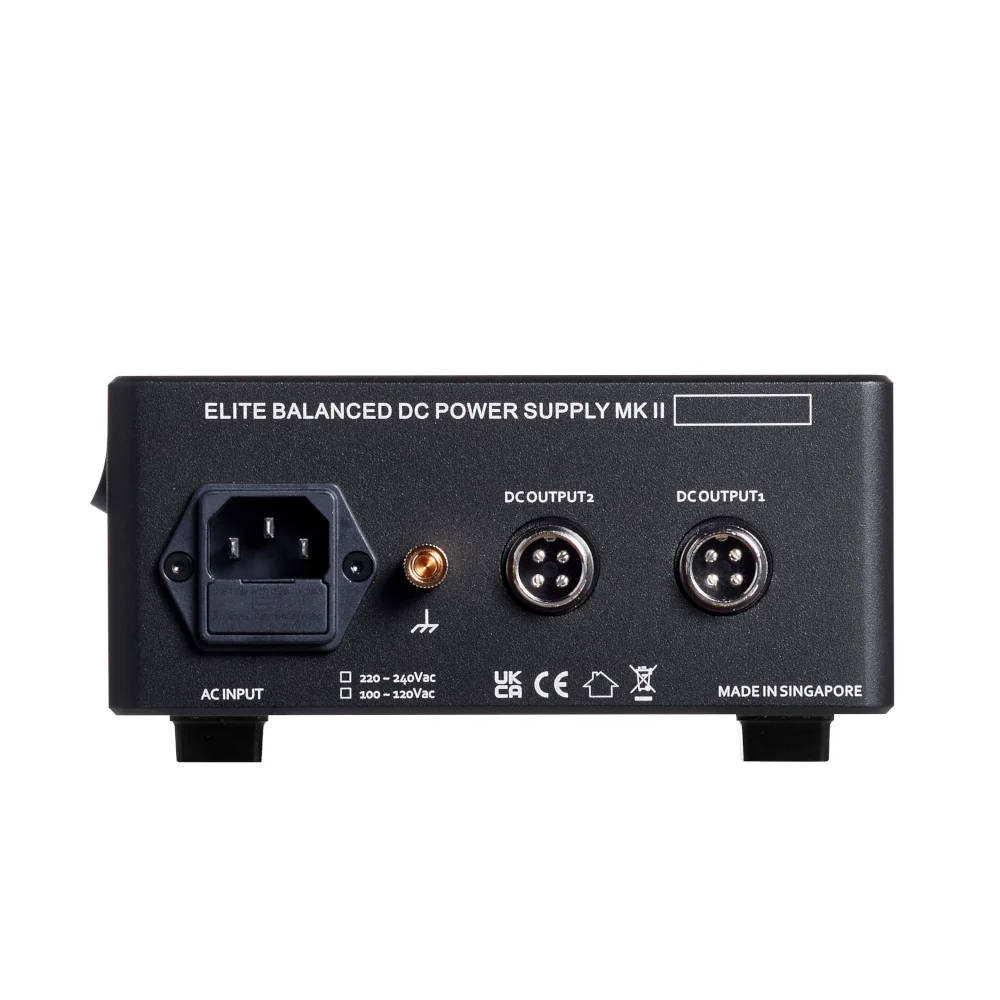

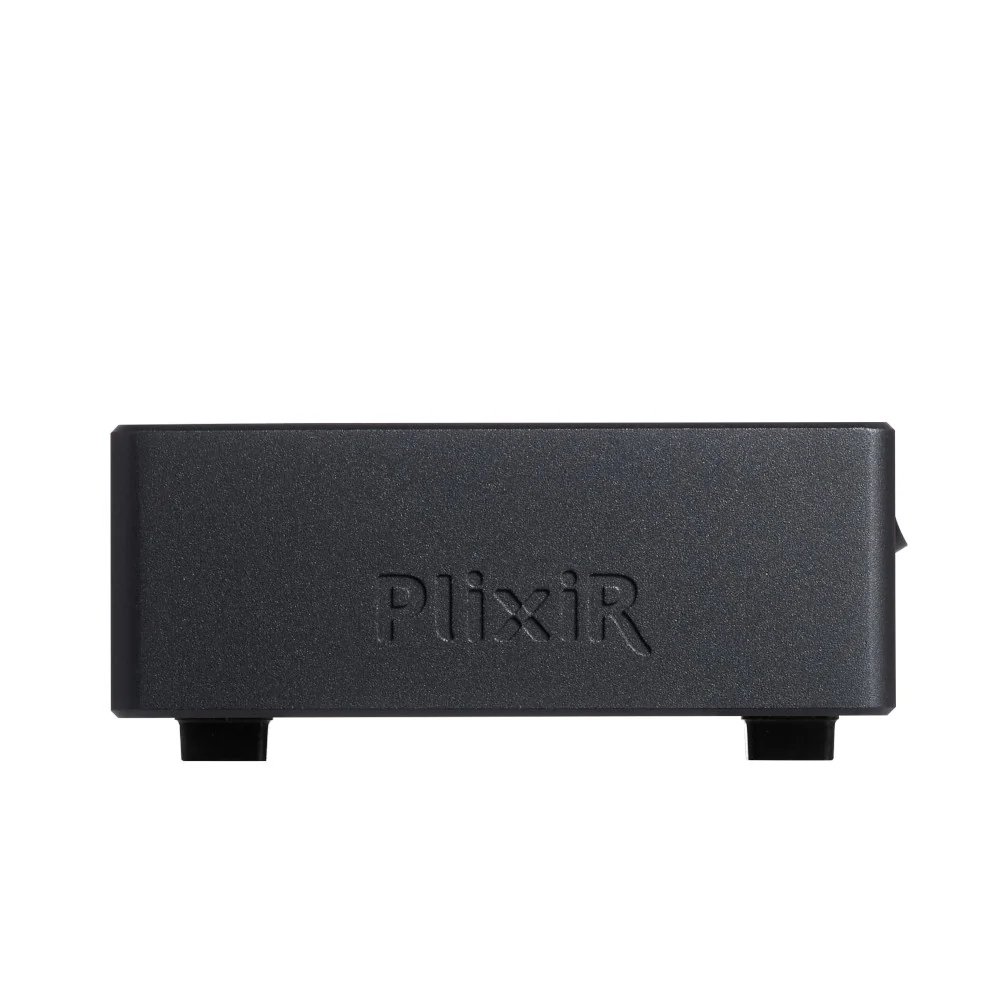

Plixir Elite BDC MK II 3A / 5A – Linear Power Supply

Name: Plixir Elite BDC MK II 3A / 5A - Linear Power Supply
Brand: PLiXIR
SKU: 45684
Availability: InStock

SKU: 45684 Categories: Power Supplies, Power Conditioners & Filters Availability: in stock

Price range: 920,00 € through 1.150,00 €

The only award winner in The Linear Power Supply Shootout just got better! With insights garnered from our flagship Statement BDC, we have improved the Elite BDC design with increased capacitance and improved layout scheme with our proprietary Star+Ground plane design. The Elite BDC MKII has an even lower noise floor, better dynamics and more body when compared to the original. The reduced variant (1-output 3Amps or 2-output 5Amps) makes choosing the right power supply easier as well.

Add to wishlist

Feel Safe Paying With

Excluding speakers & certain second hand items we offer:

Free Shipping in Greece for orders over 100€!
Free Shipping in Europe for orders over 1000€!
Free Shipping Worldwide for orders over 3000€!
Buy NOW with up to 24 Interest-Free Installments! (All Products are Eligible)

Description
Specifications

Description

Handcrafted

All PLiXiR products are handcrafted in Singapore. The ability to control all aspects of the PCB and product assembly allow us to fully optimise the performance and sound for all PLiXiR products. Each product is uniquely made. No cookie cutter process which focuses on production quantity but sacrifice performance is allowed here. We exist to make good products, not more products.

The final tuning is done by James Soh, the founder, for the PLiXiR sound.

Other Features

- Casing

Ultra rigid 1 piece aluminum body (min 5mm thick) body construction with 5mm bottom plate and 3mm top cover. This costly design provides the best vibration isolation possible with the least amount of joints. The casing doubles as the heat sink for the power supply, completing the elegant design.

- Premium Components

Selected premium components including ultra-low-impedance capacitors, high-current connectors and high-purity copper cables. All chosen for a neutral and low noise sound.

10122966212 feature image

Specifications

Output Current	Less than 1mVrms residual noise at DC output. Output Current available in 3 / 5 Amps current continuous.
Input/Output Voltage	Input voltage: 110 Vac or 230 Vac Output voltage: 5Vdc, 7.5Vdc, 9Vdc, 12Vdc, 15Vdc and 19Vdc
Casing Finish	Black anodized, sandblasted aluminum
Weight	4.2kg (3A), 4.5kg (5A)
Dimensions (in mm)	240 x 160 x 70 (3A), 240 x 160 x 79 (5A)
Comes with	(3A): 1 piece x 1 meter PLiXiR Elementa DC Power Cable with your choice of 2.1mm or 2.5mm DC plug. (5A): 2 pieces x 1 meter PLiXiR Elementa DC Power Cable with your choice of 2.1mm or 2.5mm DC plug.
