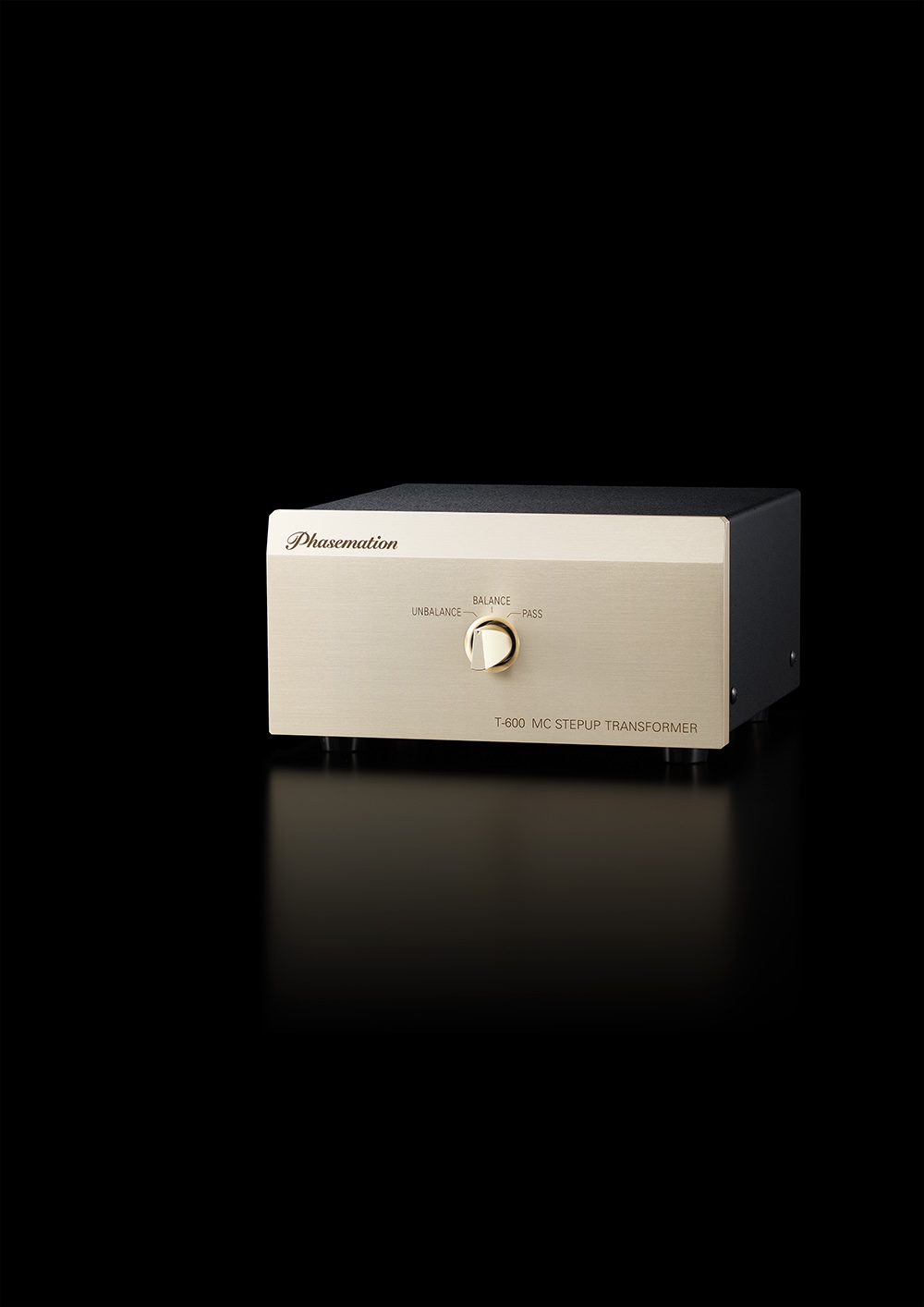

Phasemation T-600 MC Step-Up Transformer

The Phasemation T-600 is a high-end MC step-up transformer developed to preserve the extremely delicate signal generated by moving-coil cartridges while providing the voltage gain and impedance matching required by an MM phono input.

Designed as the successor to the highly successful T-550, the T-600 introduces a newly developed transformer, improved usability and greater connection flexibility while maintaining Phasemation’s strong focus on pure analogue signal transmission.

With no active amplification circuit and no power supply in the signal path, the T-600 provides transformer-based gain without introducing an additional electronic noise source.

New Transformer Design

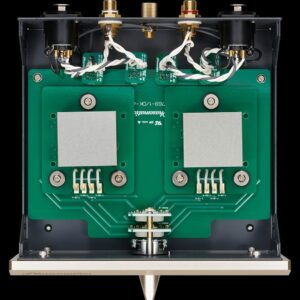

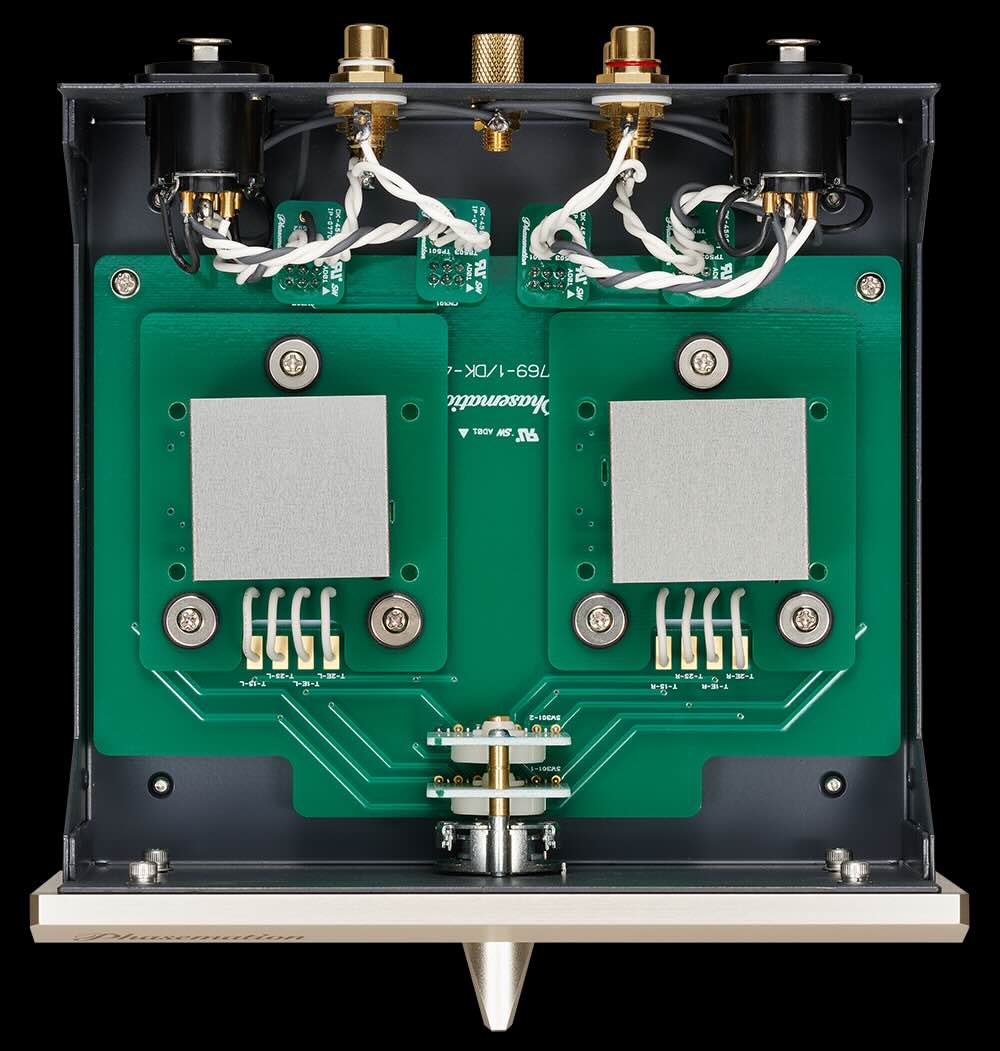

At the heart of the Phasemation T-600 is a newly developed step-up transformer.

Phasemation reviewed the complete transformer manufacturing process, including more precise control of wire tension during winding. The objective was to improve expressive capability, signal purity and the reproduction of subtle musical information.

This careful transformer construction allows the very low-level output of an MC cartridge to be increased to a level suitable for an MM phono stage while maintaining the natural character of the original signal.

Balanced and Unbalanced Connections

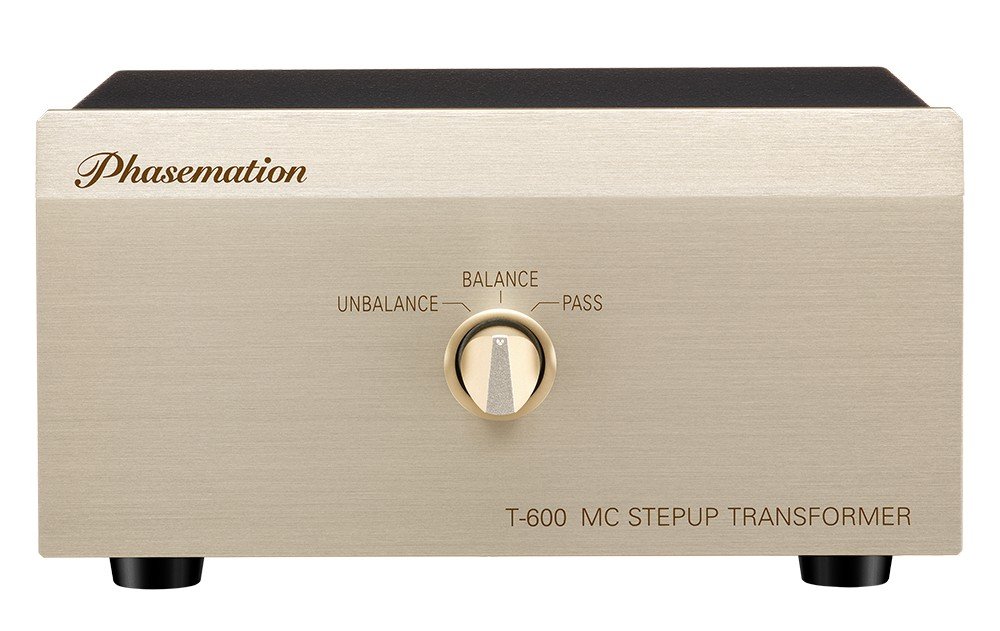

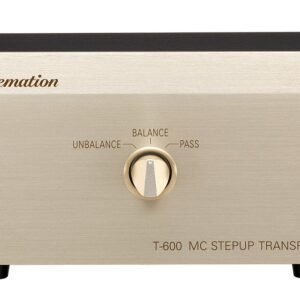

One of the major improvements over the previous T-550 is the ability to select between balanced and unbalanced inputs.

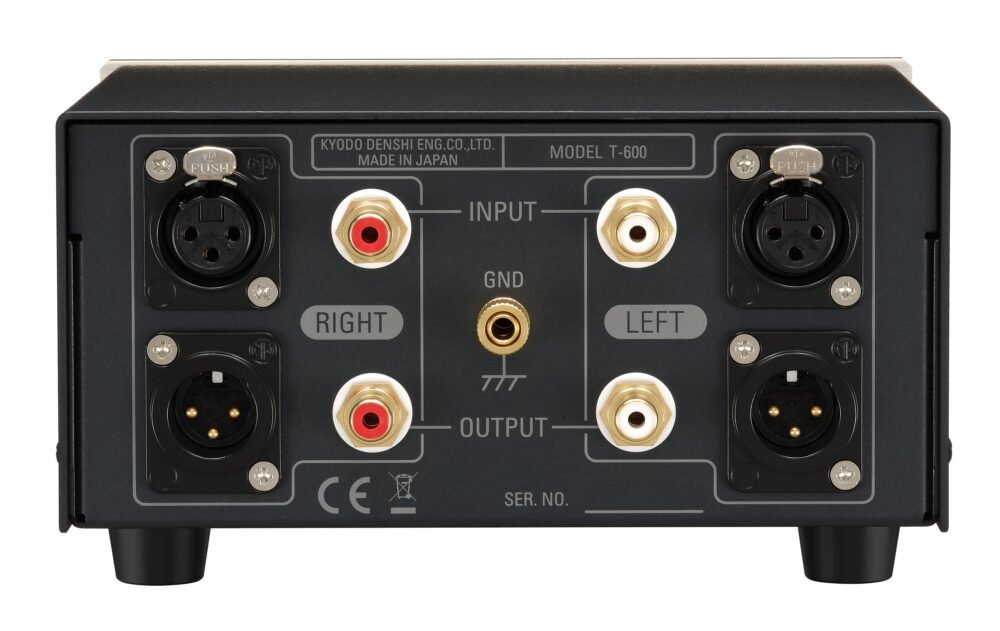

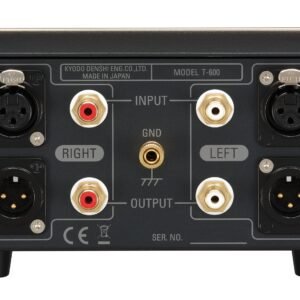

The T-600 provides both XLR balanced and RCA unbalanced input and output connections. Neutrik XLR connectors are employed, while the RCA terminals are gold-plated.

This flexibility allows the T-600 to integrate easily into both conventional RCA-based analogue systems and fully balanced phono installations.

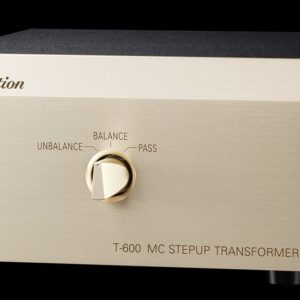

PASS Mode for MM and High-Output MC Cartridges

The T-600 introduces a useful PASS mode, allowing cartridges that do not require transformer step-up to remain connected without changing cables.

When PASS is selected, an MM cartridge or a high-output MC cartridge can be routed through the unit without transformer gain.

This makes the T-600 particularly convenient for systems using more than one cartridge or tonearm, allowing easier switching between low-output MC, MM and high-output MC cartridges.

Why Use an MC Step-Up Transformer?

A low-output moving-coil cartridge produces an extremely small electrical signal. Before this signal can be processed by a conventional MM phono stage, it must be increased to a suitable level.

An MC step-up transformer performs this task passively through magnetic coupling rather than active electronic amplification.

The Phasemation T-600 therefore provides both voltage gain and impedance transformation without requiring its own power supply. This passive approach can be especially attractive in high-end analogue systems where low noise, simplicity and preservation of musical information are priorities.

Wide Cartridge Compatibility

The T-600 is designed for MC cartridges with an output impedance between 1.5Ω and 40Ω, making it compatible with a wide range of moving-coil designs.

Its recommended load impedance is 47kΩ, allowing the transformer output to be connected directly to the MM input of a suitable phono amplifier.

The fixed 26dB step-up ratio provides substantial passive gain while maintaining a simple and direct analogue signal path.

Phasemation T-600 Specifications

Analog Grand Prix 2026 Award

The Phasemation T-600 received the Analog Grand Prix 2026 award from Analog magazine / Ongen Publishing.

This recognition highlights the T-600’s position within Phasemation’s current analogue product range and its combination of traditional transformer technology with improved connection flexibility and usability.

Perfect Partner for the Phasemation EA-220

The Phasemation T-600 is an ideal partner for the

Phasemation EA-220 Phono Amplifier
,
creating a highly synergistic analogue front end for low-output moving-coil cartridges.

The T-600 provides the passive step-up gain and impedance transformation required by a low-output MC cartridge, while the EA-220 handles the phono amplification stage with Phasemation’s all-discrete, zero-feedback design philosophy.

Together, the T-600 and EA-220 form a natural Phasemation combination for listeners seeking low noise, excellent signal purity and a coherent analogue system built around carefully optimized analogue signal handling.
