The Ypsilon Hyperion Monoblock Amplifier is Ypsilon Electronics’ flagship power amplifier and one of the most ambitious hybrid amplifier designs ever created. It was developed as the ultimate realization of the company’s long-standing goal: combining the purity and harmonic realism of single-ended triode amplification with the authority and speaker-driving capability of a very high-power solid-state amplifier.
One of the most unusual aspects of the Hyperion is that despite its huge output capability, reviewers consistently describe it as sounding closer to elite SET amplifiers than conventional high-power solid-state amplifiers.
Hyperion is a high power hybrid monoblock amplifier. It takes to the extreme the technologies we
developed over the years in our amplifiers.
Hyperion combines high power output with no overall feedback and a simple and pure signal path
of only two gain stages . It outputs more than 370 W@8 ohms and 1200@ 2 ohms.
The first gain stage uses a low impedance double triode coupled to the output stage with a wide
bandwidth silver interstage transformer. The input is transformer coupled with a specially made
silver interstage transformer that provides a perfectly balanced input.
Its unique ‘balanced-single-ended’ output stage biased in Class A for 100W@8ohms achieves an
unmatched blend of effortless drive and dynamics with the refinement and transparency of a pure
single-ended design.
Hyperion’s power supply is based on large size inductors for smooth filtering and multiple fast
capacitors.The power supply transformer is build with high quality core material and winding
techniques for ultra low mechanical , magnetic and electrical noise.
All internal wiring is with our own production silver wire with Teflon insulation.
Hyperion amplifiers offer a level of effortless drive and dynamics with transparency and refinement
that will bring you closer to the musical performance.
Specification
Value
Power @ 8Ω
370W
Power @ 4Ω
650W
Power @ 2Ω
1150W
Class A region
First 100W
Bandwidth
6Hz–80kHz
Output impedance
0.3Ω
Weight
95kg per amplifier
Gain
26dB
SPECIFICATIONS HYPERION
OUTPUT POWER 1KHz (115/230VAC)
370W rms @ 8 ohm
650W rms @4 ohm
1150W rms@ 2 ohm
THD 1khz, 6H30 Pi @ 100 W/8 ohm
0,7%
THD 1khz, 6H30 Pi @ 300 W/8 ohm
1,2%
THD 1khz, 5687 /6Η6p @ 100 W/8 ohm
1,0%
THD 1khz, 5687 /6Η6p @ 300 W/8 ohm
1,9%
BANDWIDTH
6Hz -80Khz @-3db
INPUT TRANSFORMER PEAK
+2,5db @ 50Khz
OUTPUT IMPEDANCE
0,3 ohm
INPUT IMPEDANCE
22 Kohm
GAIN
X20 (26db)

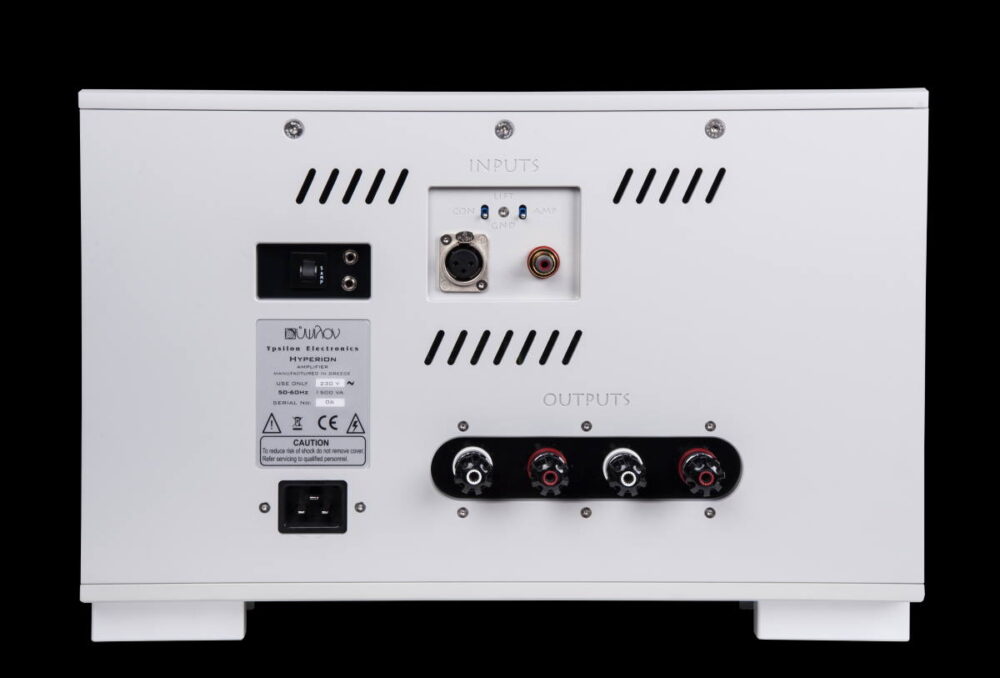

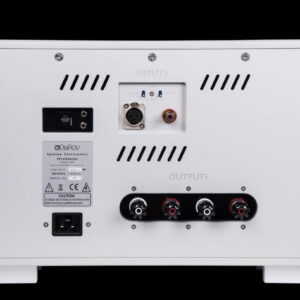

INPUTS
Balanced 1x XLR, 1x RCA
POWER CONSUMPTION
400W @ idle
DIMENSIONS
425x635x300 (W xD xH)mm
WEIGHT
95 Kgr per ch.
