Tsakiridis Devices Athena | 2500W Power Conditioner

Description

Tsakiridis Devices Athena Line Conditioner

The Tsakiridis Devices Athena is a high-performance AC line conditioner designed to provide clean, protected and carefully managed mains power for high-end audio systems. Combining a powerful 2500W mains filter, a dedicated 250W isolation transformer and power factor correction, Athena offers a comprehensive approach to power conditioning.

Designed and manufactured by Tsakiridis Devices in Greece, Athena brings together electrical protection, isolation and real-time power monitoring in a single component. Its different outlet groups allow users to select the most appropriate type of power supply for their audio equipment.

2500W High-Performance Mains Filtering

At the heart of the Athena power conditioner is a 2500W mains filtering system engineered to reduce unwanted electrical interference from the AC power network.

The filtering circuit is designed to have minimal influence on the mains supply while helping protect connected equipment against voltage surges and overvoltage conditions.

By reducing unwanted interference, the conditioner aims to provide a cleaner electrical environment for sensitive audio components, including DACs, streamers, preamplifiers and other high-fidelity equipment.

250W Isolation Transformer

The Tsakiridis Devices Athena incorporates a dedicated 250W isolation transformer for compatible source components.

Electrical isolation can help reduce the transfer of mains-borne noise and interference into connected equipment. This feature is particularly useful for low-power digital and analogue sources that may benefit from additional isolation.

The isolation transformer is handmade and individually tested by Tsakiridis Devices to ensure manufacturing quality and long-term reliability.

The combined power requirements of equipment connected to the isolated outlets must remain within the transformer’s rated 250W capacity.

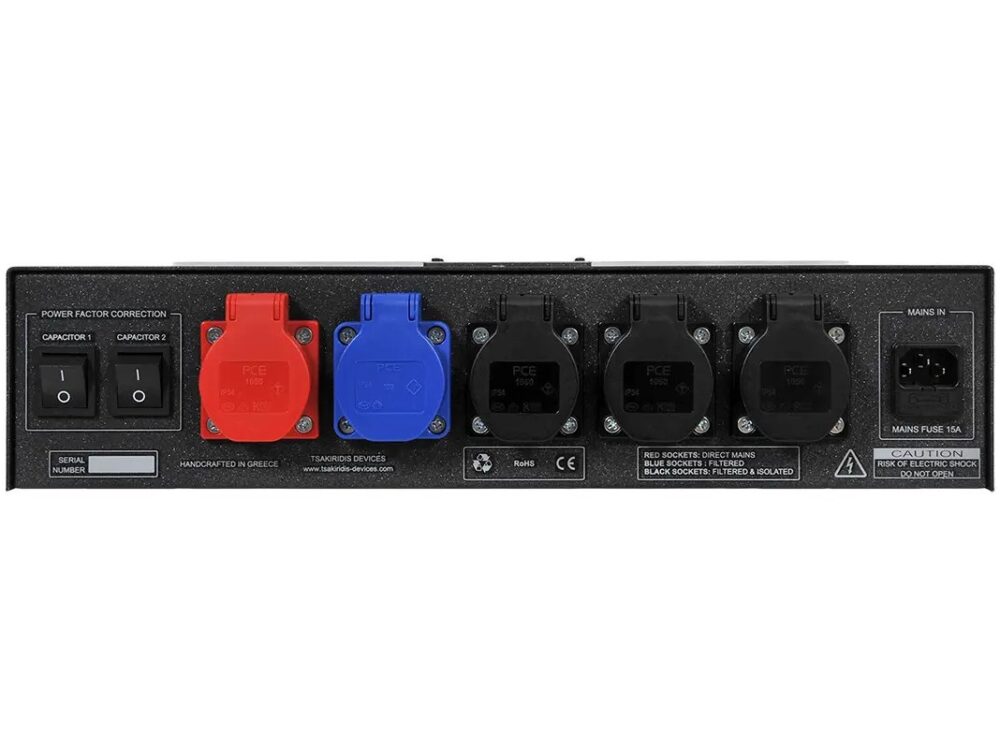

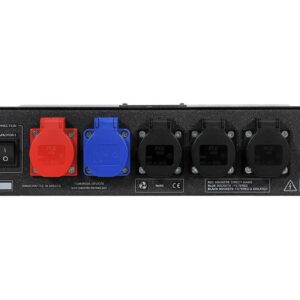

Flexible Power Distribution

Athena is available with either European Type F or American Type B power outlets.

European Type F Configuration

• 1 direct mains outlet
• 1 filtered outlet
• 3 filtered and isolated outlets
• Total: 5 outlets

American Type B Configuration

• 1 direct mains outlet
• 1 filtered outlet
• 4 filtered and isolated outlets
• Total: 6 outlets

This distribution enables an audio system to combine direct mains connection, filtered power and transformer-isolated power according to the requirements of individual components.

Power Factor Correction

A dedicated power factor correction circuit is another important feature of the Athena design.

According to Tsakiridis Devices, this circuit is intended to optimize electrical power consumption and minimize parasitic harmonic content associated with connected audio equipment.

Together with mains filtering and electrical isolation, it forms part of Athena’s integrated power-management architecture.

Real-Time Power Monitoring

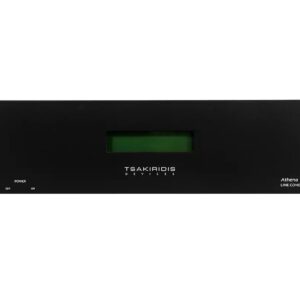

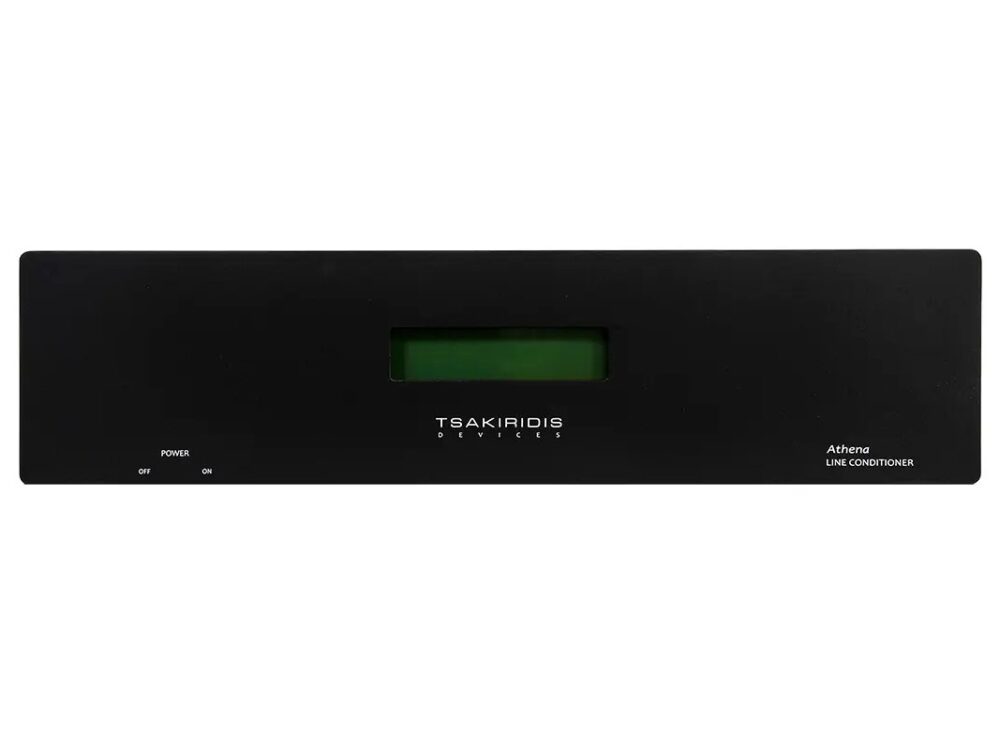

The front-panel display provides useful information about the electrical operation of the connected audio system.

Instead of functioning only as a passive power distributor, Athena allows the listener to observe important power parameters during normal equipment operation.

Android Monitoring Application

The Tsakiridis Athena line conditioner supports monitoring through a dedicated Android application.

The application allows users to observe electrical power parameters and save monitoring data in an Excel-compatible format for later analysis.

This capability is particularly useful for evaluating changes in system power consumption and understanding the electrical demands of different audio components.

Advanced Protection Features

Athena includes both overvoltage and surge protection to provide an additional level of security for valuable audio equipment.

These circuits are intended to help protect against abnormal mains conditions, although no power conditioner can guarantee protection against every possible electrical fault.

Optional DC Blocker

A DC blocker can be installed upon request.

DC components on the AC mains can contribute to transformer saturation, mechanical hum and increased operating temperature in susceptible equipment.

The optional DC-blocking circuit is designed to reduce this problem and improve operating conditions for compatible components.

Optional Soft Start

A soft-start circuit is also available upon request.

This option can be particularly beneficial when connecting equipment with high inrush current, such as power amplifiers incorporating large power transformers.

The manufacturer allows the soft-start function to be applied to direct, filtered or isolated outlet groups, according to the requested configuration.

Star Ground Wiring

Athena incorporates star ground wiring as part of its internal electrical layout.

This grounding arrangement provides an organized distribution of protective earth connections within the power conditioner and reflects the manufacturer’s attention to electrical system design.

Tsakiridis Devices Athena Technical Specifications

• Product Type: AC Line Conditioner
• Total Power Capability: 2500W
• Mains Filter Capacity: 2500W
• Isolation Transformer: 250W
• European Outlets: 5 × Type F
• American Outlets: 6 × Type B
• Direct Mains Outlets: 1
• Filtered Outlets: 1
• Filtered & Isolated Outlets: 3 (Type F) / 4 (Type B)
• Power Factor Correction: Yes
• Star Ground Wiring: Yes
• Overvoltage Protection: Yes
• Surge Protection: Yes
• Real-Time Monitoring Display: Yes
• Android Monitoring Application: Yes
• Data Export: Excel-compatible format
• DC Blocker: Optional
• Soft Start: Optional
• Weight: 12 kg
• Dimensions (W × D × H): 430 × 360 × 120 mm
• Manufacturing: Greece

Designed for High-End Audio Systems

The Tsakiridis Devices Athena is intended for systems requiring reliable power distribution, mains filtering and additional isolation for sensitive source components.

Its combination of electrical protection, isolated power outlets and integrated monitoring makes it a flexible solution for both analogue and digital audio installations.

For larger systems requiring greater isolation-transformer capacity and a dedicated high-power choke, explore the

Tsakiridis Devices Super Athena Power Conditioner
.

For further technical information and available configurations, visit the

official Tsakiridis Devices Athena product page
.
