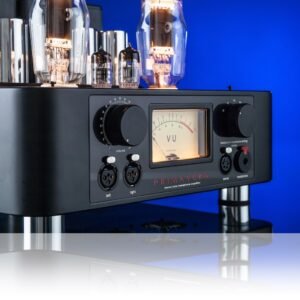

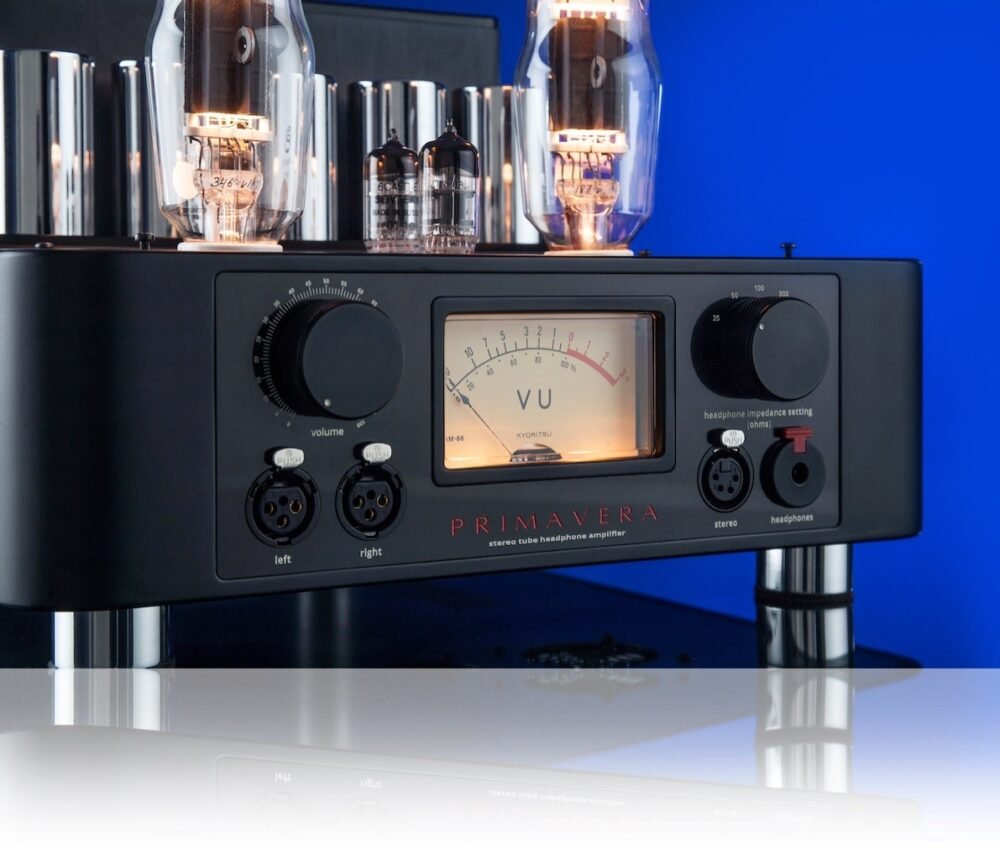

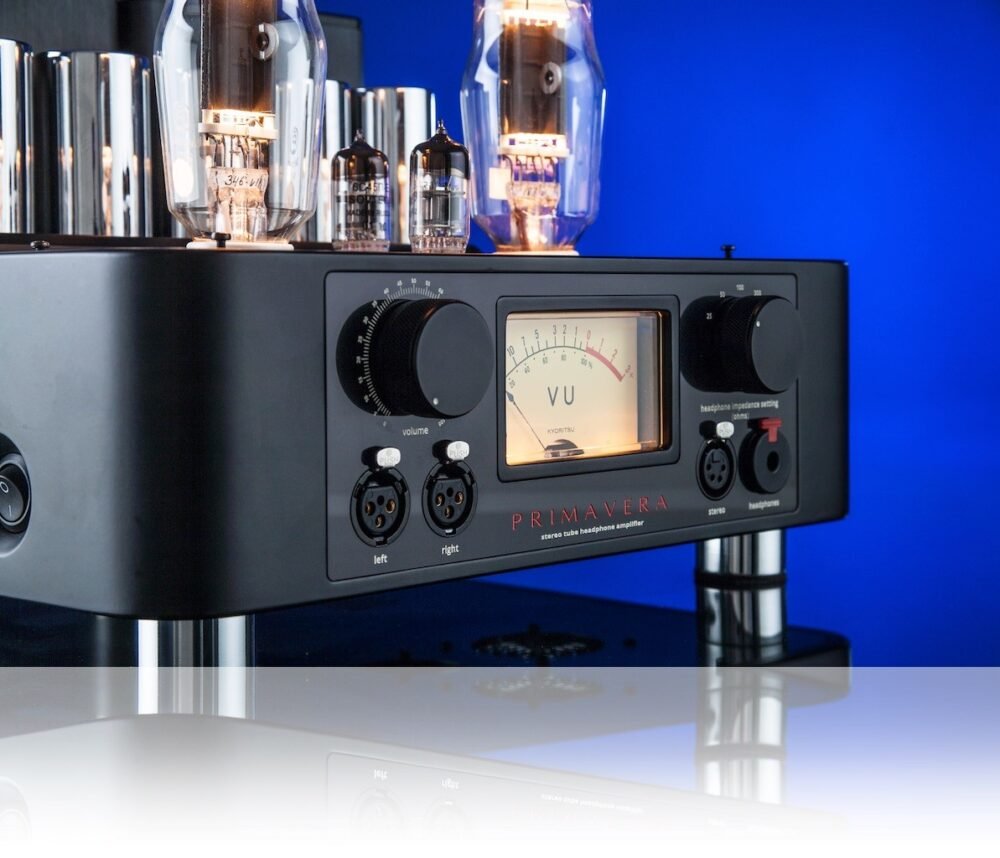

Trafomatic Audio Primavera Headphone Amplifier

SKU: 41758 Category: Availability: Pre-order

17.850,00

The Trafomatic Primavera is a high-end DHT Class A headphone amplifier delivering an impressive 9 watts into 50 ohms through SV 811-10 tubes. This zero-feedback design features dual-mono construction with separate power supplies and multiple impedance outputs, making it a true statement piece for intimate listening sessions. His beautiful vintage design and classy analog VU meter add to it all.

Available on backorder

Feel Safe Paying With
Excluding speakers & certain second hand items we offer:
  • Free Shipping in Greece for orders over 100€!
  • Free Shipping in Europe for orders over 1000€!
  • Free Shipping Worldwide for orders over 3000€!
  • Buy NOW with up to 24 Interest-Free Installments! (All Products are Eligible)

Description

DHT All Analog Heaphone Amp: The Primavera

Primavera is the reborning in our lifes cycles. It’s the time when we celebrate the season of renewal and regrowth. The brand new Primavera headphone amplifier from Trafomatic Audio is precisely this, a new,  fresh approach for the most intimate listening, and is here to stay for all the years around.

During the immersion in the musical message, the richness of colours, the smells, the clouds, the sun, and dirt are there, all of the emotions are exposed, for our amusement. Capable of driving even the most demanding loads, it’s striking design sets the Primavera as a pure objet d’art, an icon in the rarefied world of Hi-End.

Features:

  1. Direct coupling between stages
  2. Implements special C-L-C anode voltage filter using Mundorf MLytic HV type electrolytic and High inductivity filter choke made by Trafomatic Audio
  3. Completely separated power supply for each channel including main transformers
  4. II C core oversized output transformers
  5. The output transformers are highly sectioned with harmonically sized sections, which results in a minimum leakage inductance and the best high frequency performance
  6. Zero feedback

Specifications

Class of operation: Single End DHT Class A
Tubes: 1x 6S45P and 1x SV 811-10 (SV572-10) per channel
Input voltage: 230V/50Hz – 115V/60Hz selectable
Power consumption: 280VA
Headphone output impedance: 25 – 50 – 100 – 300 – 600 ohms
Gain: 33 dB
Maximum output power on headphone output: 9W into 50 ohms
THD at 0.5W/1kHz: 0.2%
Output for headphones: Neutrik 4 pins balanced connector, ¼” Neutrik connector, 2 x Neutrik 3 pins balanced connectors
Inputs: XLR + RCA
Input sensitivity: 0.5Veff
Input impedance: 47Kohm
Frequency bandwidth: Headphone and line out: 10Hz (-1dB) – 80KHz (-3dB)
S/N Ratio: 88dB
Weight: 30 kg
Dimensions: W 340 x D 480 x H 240 mm
