Takatsuki TA-274B Rectifier Tube | Made in Japan

Description

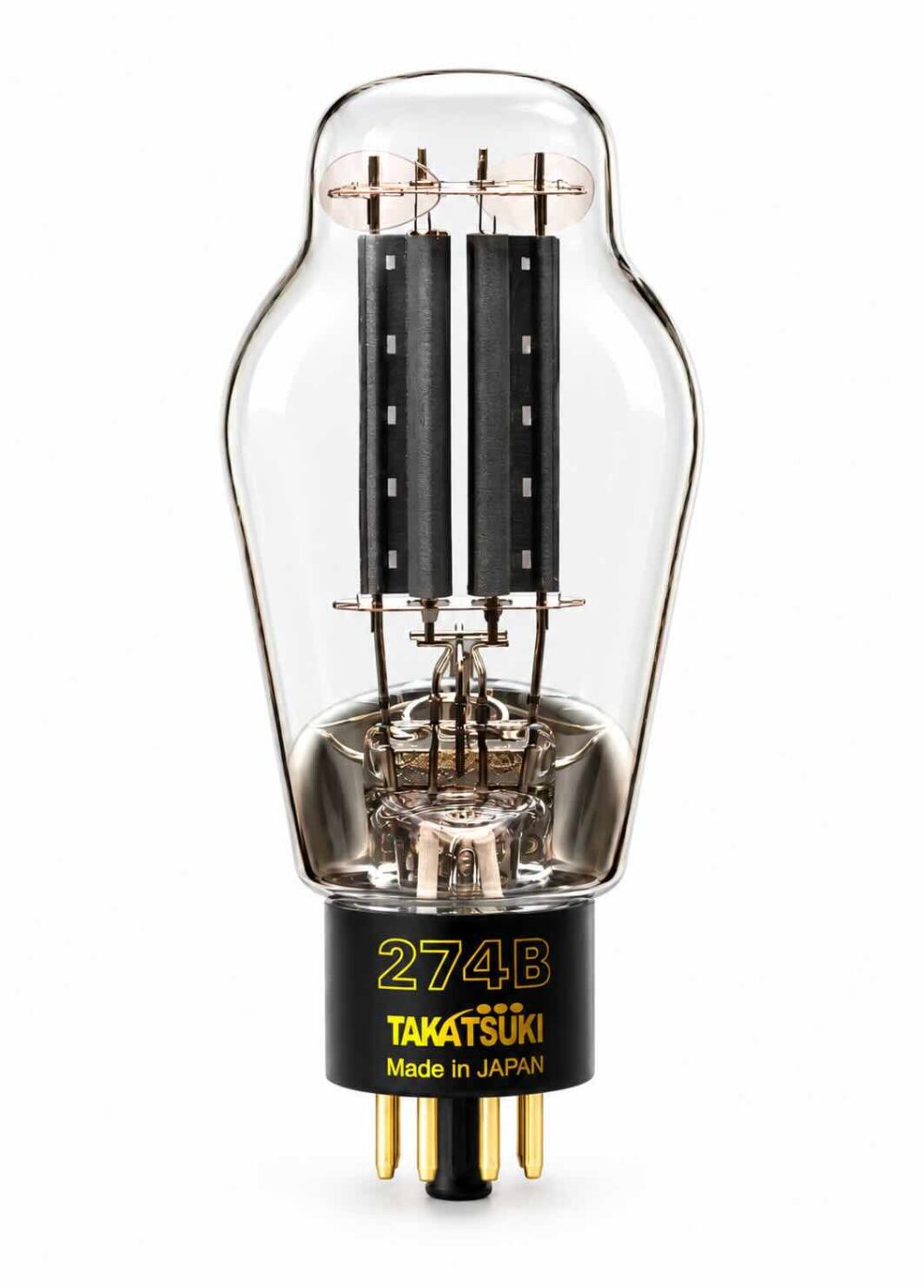

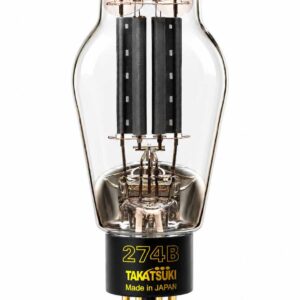

Takatsuki TA-274B Japanese Rectifier Tube

The Takatsuki TA-274B is a premium Japanese rectifier tube developed and manufactured by Takatsuki Electric Industry in Japan. Built with the same uncompromising philosophy behind the renowned TA-300B, it combines precision manufacturing, carefully selected materials and rigorous quality control for demanding high-end audio applications.

Japanese Vacuum Tube Manufacturing at the Highest Level

Takatsuki Electric Industry has a long history in semiconductor and electronic component manufacturing. Drawing on decades of experience in precision production, the company returned to vacuum tube development with the goal of creating modern Japanese tubes to the highest possible standards.

The TA-300B was introduced in 2010, followed by the Takatsuki TA-274B rectifier tube in 2012. The TA-274B was developed using the technologies, production techniques and know-how accumulated during the creation of the TA-300B.

Each Takatsuki tube is manufactured and assembled with exceptional care in the company’s own Japanese production facilities, using selected materials and stringent quality control throughout the entire manufacturing process.

Takatsuki TA-274B: A Commitment to Made-in-Japan Quality

Takatsuki vacuum tubes are produced in Japan with an emphasis on precision rather than mass production. Components and manufacturing methods are continuously reviewed in order to achieve consistent mechanical and electrical performance.

Skilled technicians assemble the tubes by hand under carefully controlled production conditions. From component management through final inspection, the emphasis remains firmly on accuracy, reliability and repeatability.

This manufacturing philosophy allows the Takatsuki TA-274B to represent a distinctly modern approach to vacuum tube production, combining traditional craftsmanship with the precision techniques developed through the company’s semiconductor manufacturing experience.

Quality Management Throughout the Production Process

Quality control is applied throughout the production process. Components undergo detailed visual inspection, including inspection with magnification where required, while manufacturing data is carefully recorded for traceability.

After cleaning, sensitive components are protected against oxidation and are handled under controlled conditions before assembly. Takatsuki also employs carefully selected joining and welding methods in order to maintain consistency and mechanical integrity.

Each completed tube is subjected to inspection and testing to help ensure stable performance from production lot to production lot.

Takatsuki TA-274B Construction Characteristics

Glass Material and Lead-Free Construction

The glass construction is designed to withstand the high operating temperatures encountered inside high-power vacuum tubes. The matching thermal expansion characteristics of the glass and lead-wire materials help maintain a reliable vacuum seal, while the thick glass envelope contributes to mechanical rigidity and resonance control.

Plate (Anode)

The plate structure is manufactured using specially processed metal materials selected for strength, durability and dimensional precision. The construction is designed to maintain mechanical stability under demanding operating conditions.

Spring-Supported Filament

The filament support system uses carefully selected springs manufactured from high-quality materials. Each component is inspected to ensure consistent tension and reliable filament positioning.

Filament

The filament structure is engineered for stable and uniform heating. High-purity materials and controlled manufacturing help ensure reliable emission and long-term operating consistency.

Grid and Internal Precision

Critical internal components are manufactured and selected to extremely tight tolerances. Takatsuki applies precision winding and inspection techniques developed through its extensive experience in electronic component manufacturing.

Emission and Reliability

The electron-emitting materials used inside the tube are selected with long operating life and reliability in mind. This attention to internal materials and manufacturing consistency is a central part of the design philosophy behind the Takatsuki TA-274B.

Takatsuki TA-274B Technical Specifications

• Model: TA-274B
• Type: Rectifier Twin Diode
• Construction: Directly Heated Twin Diode
• Filament Voltage / Current: 5V / 2A AC
• Maximum Plate Voltage: 660V per plate
• Maximum DC Output Current: 225mA
• Maximum Transient Current: 2.5A within 20msec
• Peak Plate Current: 700mA per plate
• Country of Manufacture: Japan

Designed for High-End Tube Amplification

The Takatsuki TA-274B is intended for high-end valve amplifiers designed around the 274B rectifier format. Its precision manufacturing and strict quality control make it a premium choice for audiophiles seeking a Japanese-made rectifier tube for reference-level systems.

The TA-274B is also used in Takatsuki’s own

Takatsuki TA-S01 Power Amplifier
,
where it operates alongside the company’s TA-300B output tubes.

For additional manufacturer information, visit the

official Takatsuki Electric Industry website
.
