Phasemation PP-5000

Name: Phasemation PP-5000
Brand: Phasemation
SKU: 97519
Price: 15000.00 EUR
Availability: InStock

SKU: 97519 Category: Cartridges Availability: Pre-order

15.000,00 €

Phasemation began in 2002 with the P-1 cartridge. In 2022, they celebrated their 20th anniversary by launching the PP-5000, a new high end flagship cartridge hailed as a milestone in cartridge technology. Featuring a diamond cantilever, it enhances spatial expression, sound image localization, and bass performance, embodying the essence of the brand.

Available on backorder

Add to wishlist

Feel Safe Paying With

Excluding speakers & certain second hand items we offer:

Free Shipping in Greece for orders over 100€!
Free Shipping in Europe for orders over 1000€!
Free Shipping Worldwide for orders over 3000€!

Description

Phasemation PP-5000

Phasemation’s Magnum Opus

Phasemation started with the P-1 cartridge in 2002, and 2022 marked the 20th anniversary of the brand’s founding. To commemorate this anniversary, they created a new flagship cartridge, the PP-5000, which is a new milestone in the field of cartridges and said to be the origin of the brand. Based on the knowledge gained through continuous research on cartridges, the PP-5000 has a diamond cantilever to achieve even greater spatial expression, sound image localization, and bass sound playing which is suitable for a flagship cartridge.

Main Features

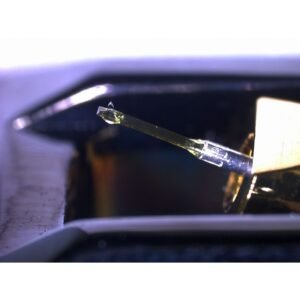

Diamond Cantilever Expands The Amount of Information

For the cantilever, we for the first time adopted a diamond cantilever. The amount of information has been expanded by enhancing the propagation speed.

Improved the trackability by reviewing the vibration system

The vibration system, including the damper, has been improved to match the new cantilever. The trackability has been improved for better tracing.

Pursuing the precision of the mounting angle of the natural diamond chip

The stylus tip is made of natural diamond, which is becoming rare to be sold it the market. The mounting angle precision of the stylus tip has been reduced from ±5 deg to ±3 deg for a more accurate tracing capability.

Improved the polishing preciseness for magnetic circuit components

By adding a new polishing process to the permendur yoke of magnetic material to make the magnetic field more uniform, the reproduction of minute signals has been improved and achieved a more spatial expression.

Body structure of a new generation

The stainless-steel base is newly coated with TiN (titanium nitride) to achieve a beautiful golden color as well as corrosion resistance and sufficient hardness. The duralumin cover is coated with DLC, a coating that has earned a reputation from the past. In addition, the new shape of the body controls unwanted vibrations and is suitable for flagship models and has a more direct sound quality.

Received Awards

Stereo Sound Publishing Stereo Sound Grand Prix Grand Prix Award 2022
Ongen Publishing analog Grand Prix Gold Award
Ongen Publishing Audio Excellence Award 2023 Special Grand Prize
SEIBUNDO SHINKOSHA Publishing MJ Technology of the Year Analog Components Honorable Mention
ONGAKU NO TOMO SHA COTP. STEREO magazine Best Buy Components 2022 Phono cartridge over ¥500,000 1st Place Year Compo

Specifications

Power Generation Type	Moving Coil Type
Impedance	4Ω
Appropriate needle pressure	1.7 to 2.0g
Output voltage	0.3mV or more (1kHz 50mm/s horizontal direction)
Compliance	8.5μ /mN [8.5×10-6cm/dyne]
Playback frequency range	10Hz to 30kHz
Separation	30dB or better (1kHz)
Channel balance	within 1dB (1kHz)
Cantilever	Synthetic diamond (0.2mm square)
Stylus tip	Natural diamond (line contact / curvature 0.03 x 0.003 mm)
Magnet	Samarium cobalt
Magnetic circuit material	Permendur
Base Material	Machined from stainless steel / TiN treatment
Body Material	Duralumin machined / DLC treatment
Body weight	14.3g

*DLC (Diamond Like Carbon) is a generic term for carbon thin films with high hardness and electrical insulation properties similar to diamond, created with a vapor phase synthesis method using ions.
