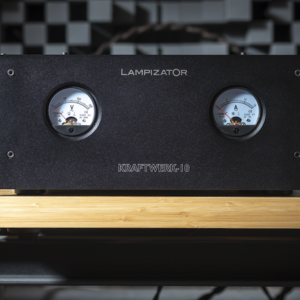

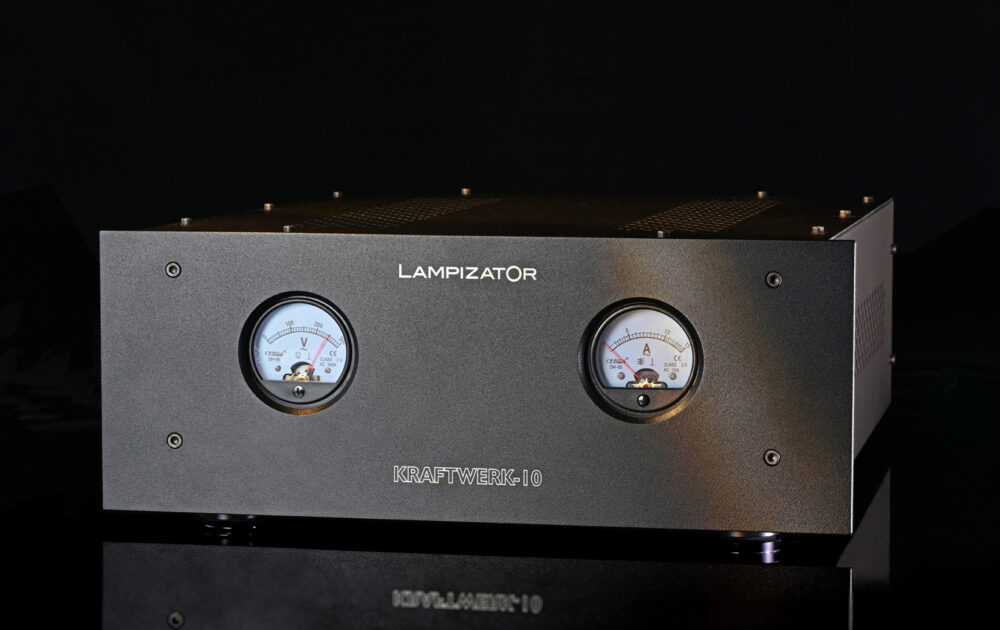

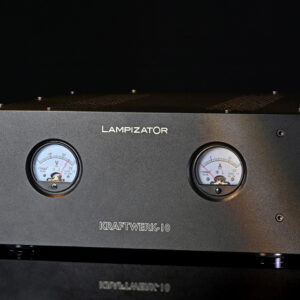

LampizatOr Kraftwerk 10 Power Station

Name: LampizatOr Kraftwerk 10 Power Station
Brand: LampizatOr
SKU: 74542
Price: 4960.00 EUR
Availability: InStock

SKU: 74542 Category: Power Conditioners & Filters Availability: Pre-order

4.960,00 €

LampizatOr Kraftwerk stands out as a specialized device aimed at elevating the listening experience through dedicated power conditioning specifically for music applications. Its thoughtful engineering and design make it an appealing choice for serious audio setups.

Available on backorder

Add to wishlist

Feel Safe Paying With

Excluding speakers & certain second hand items we offer:

Free Shipping in Greece for orders over 100€!
Free Shipping in Europe for orders over 1000€!
Free Shipping Worldwide for orders over 3000€!

Description

KRAFTWERK-10 AC Filter

The Kraftwerk (German for Electric Power Plant) was conceived as a development of our 20 years old SILK project. We kept the good features like unrestricted, open sound, more analog style of presentation, better soundstage, easier to follow musical threads, darker background etc. We added 4 more filtered outputs and 2 unfiltered for the monoblocks. Another new feature is a DC blocker available for 4 filtered and 2 unfiltered outputs. We also added Voltmeter, Ampmeter, and much bigger chassis.

The electrical design is based on the Lukasz Fikus’ Polytechnic studies diploma, where the AC and RFI/EMI influence on electronics was the subject. The SILK also was the fruit of frustration with the way other AC devices influence the sound. Namely, we believe that separation transformer based conditioners, AC regenerator conditioners, and deep filter conditioners make sound lifeless and uninvolving. We tried to design a filter that makes music actually MORE BEAUTIFUL !

What is MOST IMPORTANT is not to spoil the dynamics, live type of sound. Not choke the amplifier power and drive.

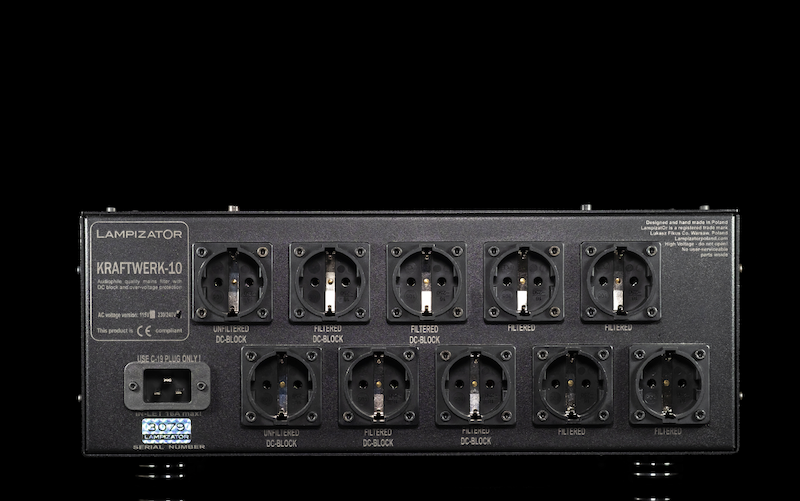

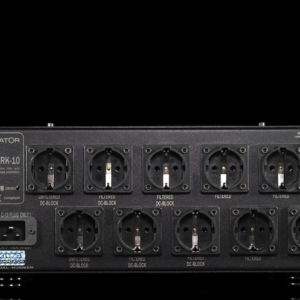

The main difference between Silk and Kraftwerk are: Silk is 4 outlets, Kraftwerk has 8+2 = 10 outlets.

the Kraftwerk is configurable as European – SCHUKO , British UK plug and USA, no other outlets are available. We can mix outlets on one unit – depending what cables you have or what cables are easiest to buy in your region. (the wall is one cable anyway)

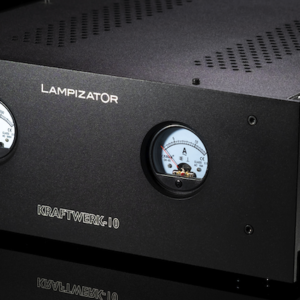

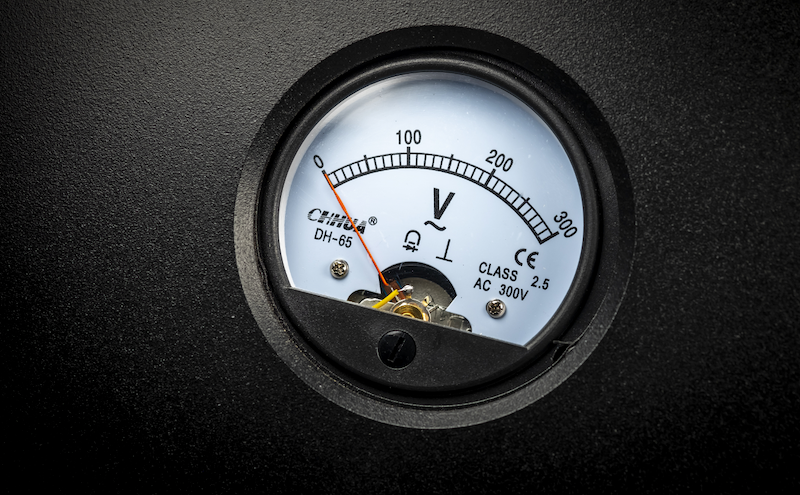

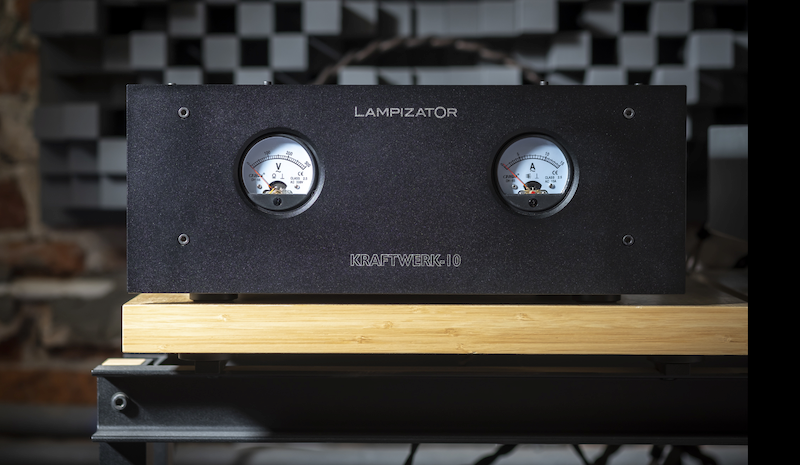

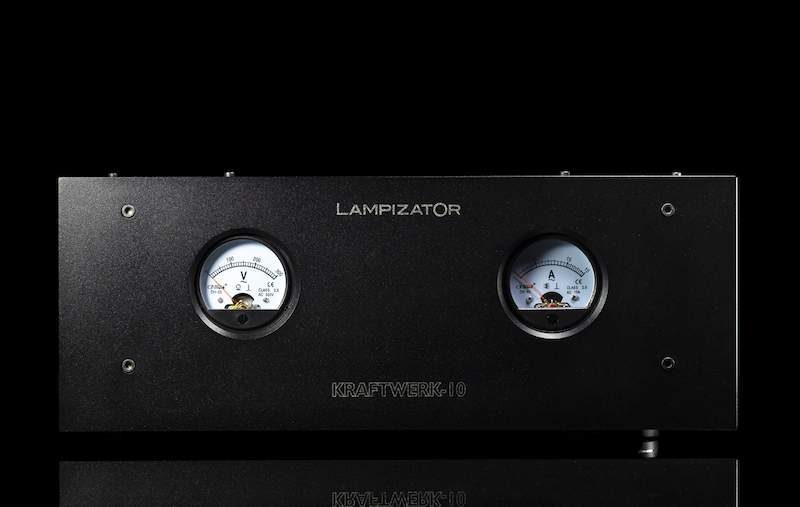

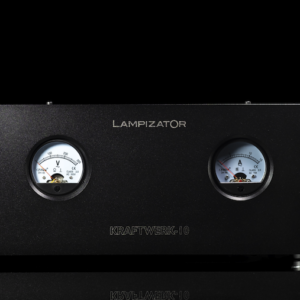

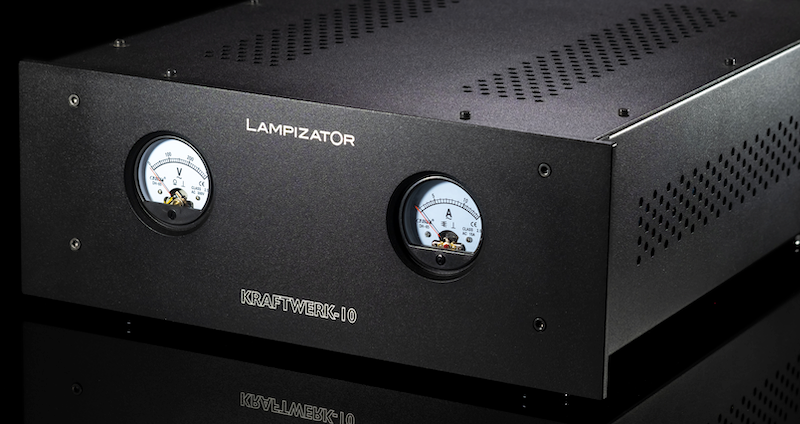

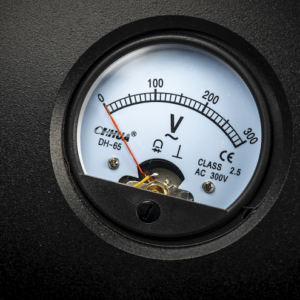

Kraftwerk also has voltage meter and amprerage meter.
Kraftwerk accepts C19 AC plug cable only as an input. We supply the C19 cable if needed.

Silk was a filter only, in addition to filtering – Kraftwerk provides surge protrection, over-voltage protection, lightning protection and DC blocking.

Specification

Main Parameters	Details
Dimensions	440mm [W] x 505mm [D] x 180mm [H]
Weight	10kg (net)
Copper Version Weight	11kg
Individually Filtered Outlets	8
Non-Filtered Outlets	2 with DC blocking
DC Blocked Outputs	4 of the 8 filtered outputs and both unfiltered outputs
Max Current (Filtered Outputs)	10A or 2300 W per output
Max Current (Unfiltered Outputs)	10A or 2300 W per output
Max Summary Load Current	16A or 2.3 kW
Fuses	None
Switches	None

Features and Configuration

Features and Configuration:

Analog Filters:

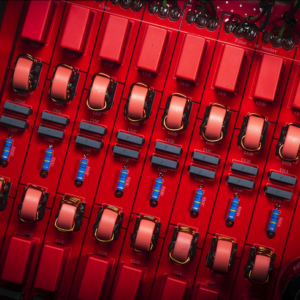

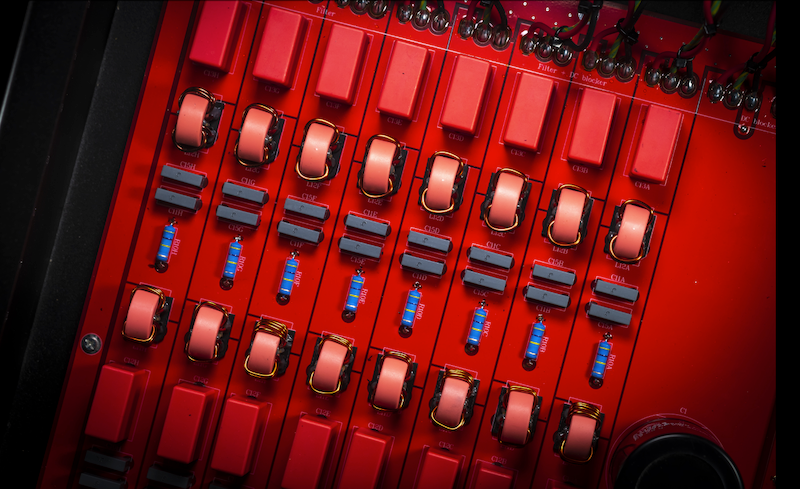

- 8 Independent Analog Filters: These filters are critical for high-frequency noise reduction, ensuring that any unwanted interference is minimized without affecting the audio signal integrity.
- DC Blockers: 4 of the filters include DC blockers that help eliminate parasitic DC signals in the mains supply, which can cause hum and noise in audio gear.
Outputs:
- Total of 10 Outputs: This allows flexibility in connecting multiple audio devices.
- 2 Unfiltered Outputs with DC Blocker: These can be used for devices that do not require additional filtering but still benefit from the removal of DC components.
Over-Voltage Protection:

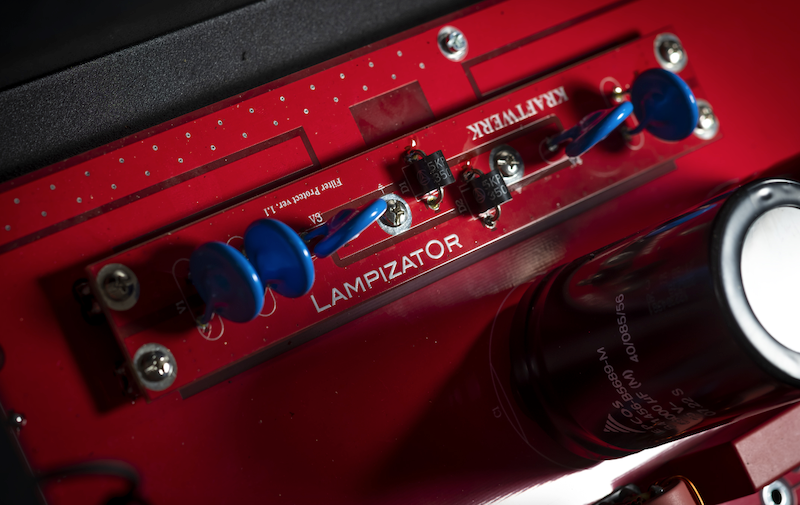

- Sophisticated Protection Mechanism: Designed to protect equipment from surges due to switching spikes or lightning strikes, the unit will engage if the voltage exceeds approximately 20V above the mains’ peak (typically 240V in many regions).

Setup Considerations:

Location: Place the Kraftwerk unit in an area with good ventilation and away from other electronic devices that may cause magnetic interference.
Power Source: Connect it to a dedicated power line if possible to maximize the cleanliness of the power supply.
Audio Equipment Connection: Use high-quality power cables to connect your audio devices ensuring the best performance from the Kraftwerk.

Benefits:

Enhanced audio clarity and detail due to reduced noise.
Protection of sensitive audio components from voltage spikes.
Customizable power output to suit various audio devices.

By using the LampizatOr Kraftwerk, you can potentially achieve a transformer-like effect on the quality of your audio playback, making it a valuable addition to any serious audio setup. Ensure to follow the manufacturer’s instructions for optimal setup and usage.
