SKU: 45645Category: AmplifiersAvailability: In Stock
4.880,00 €
The Lab12 Suara is a pure Class A power amplifier, now upgraded to the Toroid Version with dual toroidal transformers and power supplies, delivering 50W per channel of exceptional musicality. Featuring high-quality components and both Triode and Ultra Linear modes, the Suara offers a warm, fatigue-free listening experience. Available in two finishes with an optional tube cage.
The newly upgraded Suara-Toroid Version increases the limits of this already exceptional amplifier even further.True Dual Mono design with two separate high current, low noise, heavy toroidal transformers and fully upgraded dual power supply stages, taking full advantage of the powerful KT-150 power tubes and lower the noise floor to an unbelievable level in this high-fidelity audiophile Parallel tube Class A power amplifier.
The attractive simplicity and purity of class A single ended power amplifiers are imprinted in Suara.
Suara is a pure Class A power amplifier that has the ability to reproduce music with exceptional musicality and directness whilst its 50W per channel bring immense and controlled power out of the box able to drive any audio system’s loudspeakers.
Special audio grade matched parts of the finest selections in every stage, refined voicing tests and countless hours of actual listening, allowed us to create this great octal tube based power amplifier, that offers both Triode and Ultra Linear mode at the tip of the switch.Suara’s natural, intimate and warm reproduction of sounding will surely immerse the listener in a long- lasting audition without any listening fatigue.

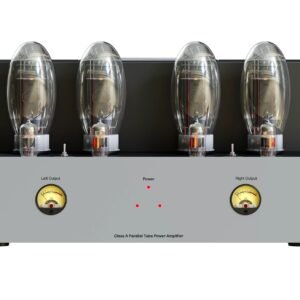

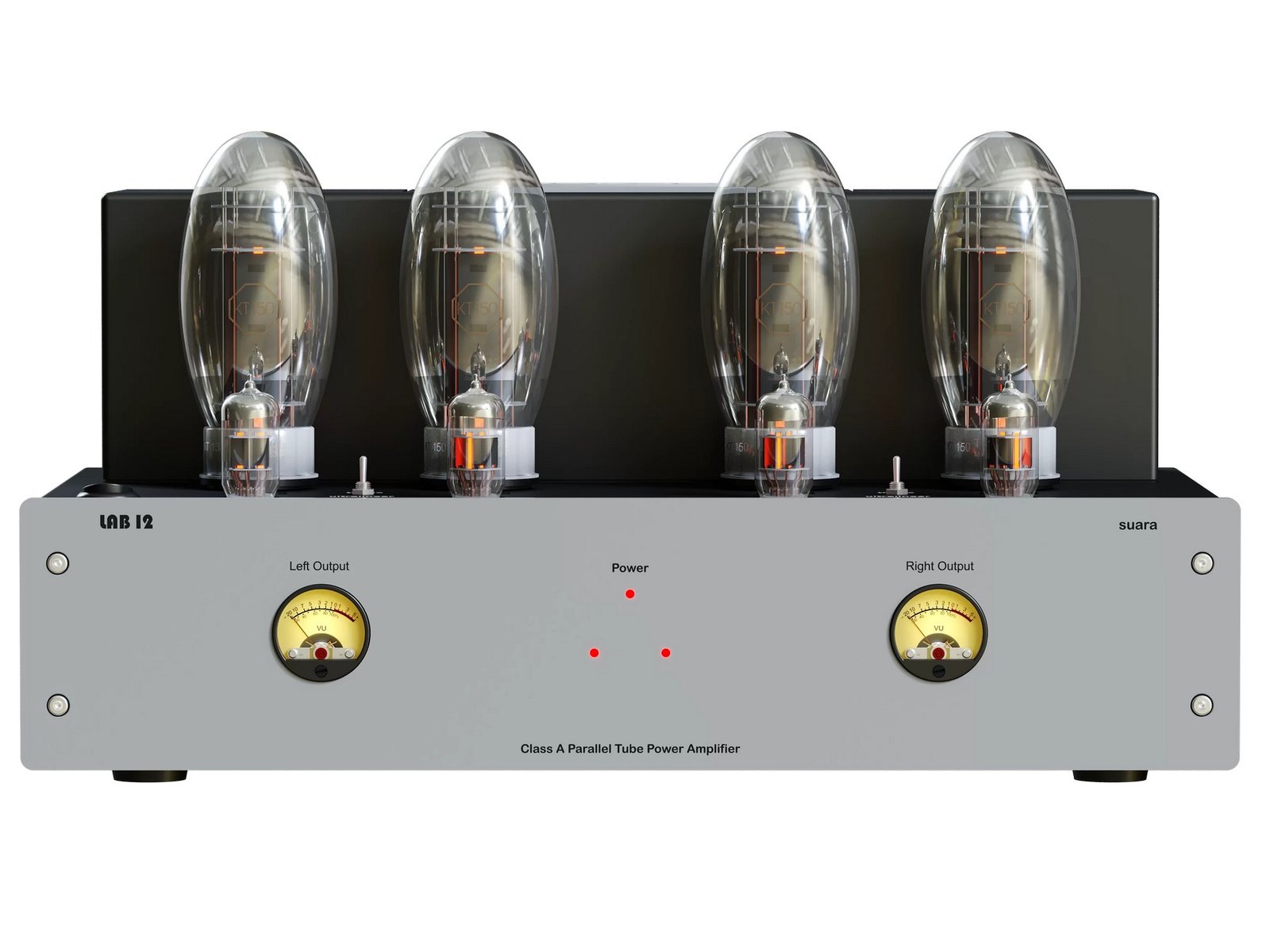

Like all of the Lab12 products, Suara also comes with two colour choices of glass blasting anodizing finish.
An optional tube cage for increased safety and different aesthetic approach of your amplifier is available to obtain.
Features
KT150, KT120 versions available
6550, KT88, KT120, KT150 compatible
Dual toroidal power transformers

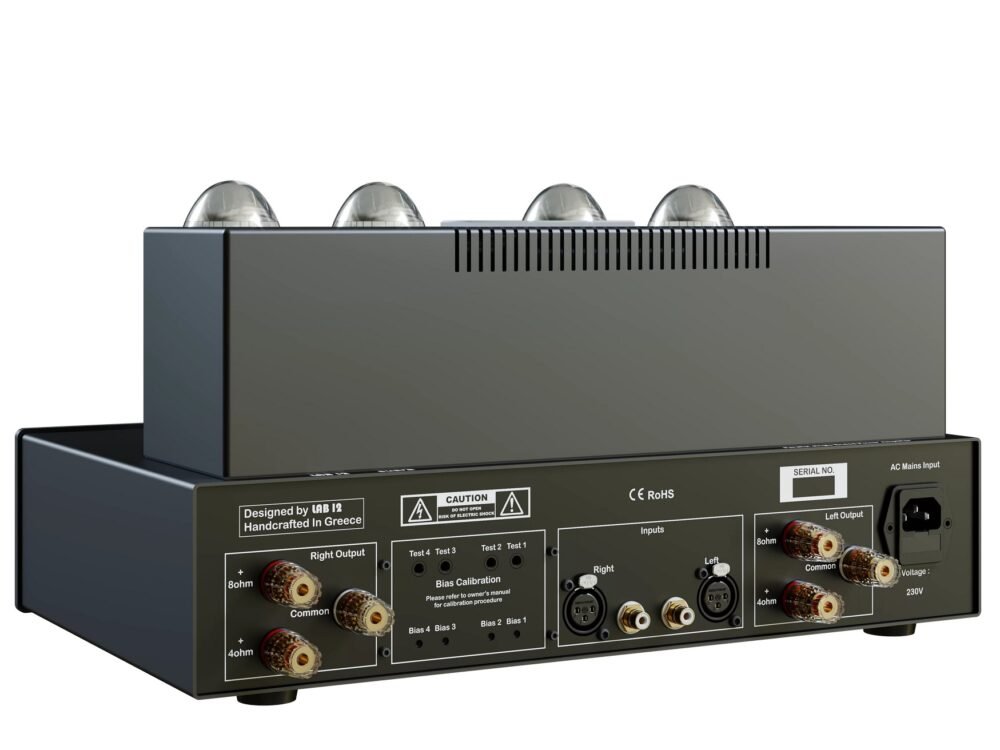

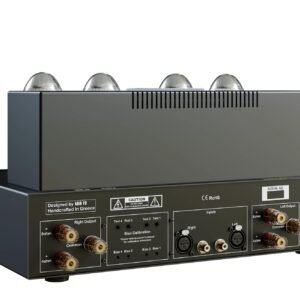

Easy Manual Bias Adjustment on the back plate

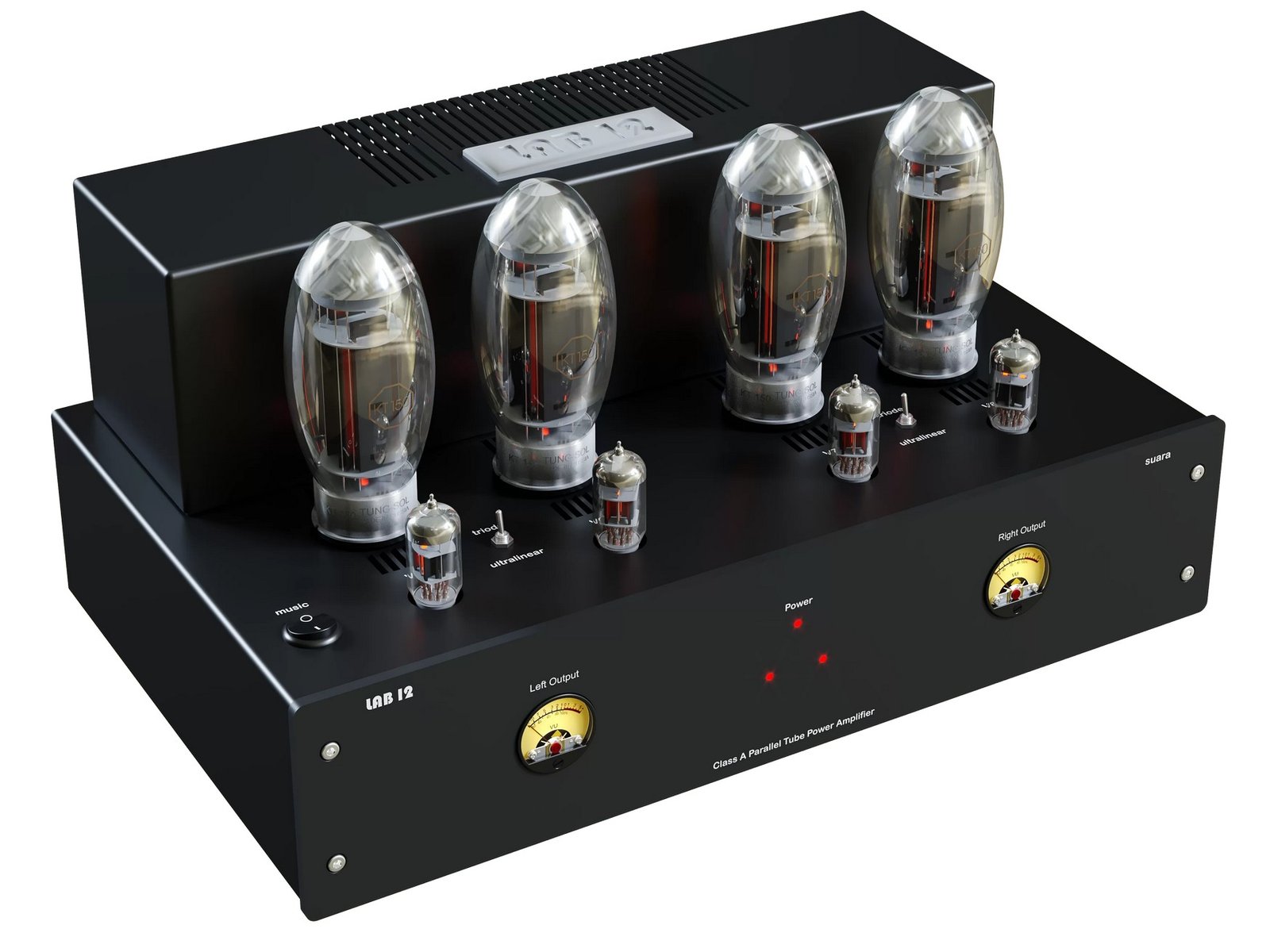

Triode / Ultra Linear selector switch
Handcrafted custom audio grade transformers
No feedback design
Special audio grade matched parts in every stage
SRSG® implementation
Fine symmetry® implementation
Analog retro Nissei VU meters
5mm Aluminum face panel
Five Years Guarantee
Specifications
Feature
Specification
Power
230VAC 50Hz (115VAC 60Hz)
Power consumption
350 VA max
Output power
50 Watt per channel (KT150)
Frequency response
20 Hz-25 KHz (-0.9dB)
Input impedance
100 Kohm
Recommended speakers
4-8 ohm
Tube complement
4x dual triodes, 4x KT120/KT150 Power Pentodes
Input sensitivity
1.8V triode mode / 1.5V Ultra Linear mode
Inputs
1x line unbalanced stereo (RCA and XLR connectors)
Available Colors
Matt Black, Frozen Silver
Dimensions (WxHxD)
43x19x29 cm
Weight
22Kg
