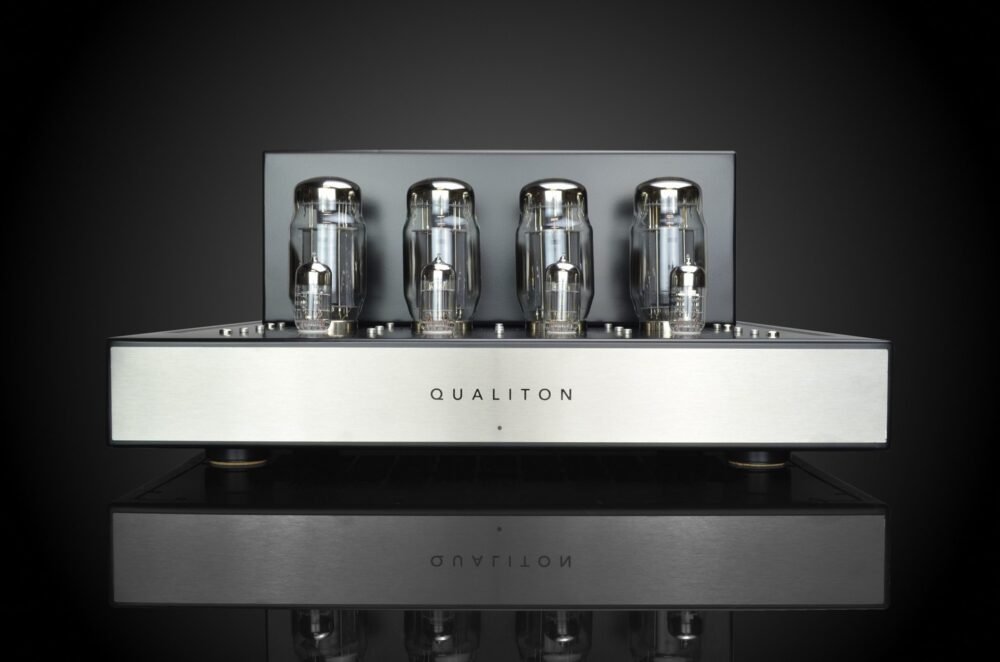

Audio Hungary QUALITON P200 Classic Power Amplifier

Audio Hungary QUALITON P200 Classic Power Amplifier

100W Stereo Tube Power Amplifier | 200W Bridge Mode | KT120 Output Tubes | Automatic Bias | Custom Toroidal Transformers

The Audio Hungary QUALITON P200 Classic Power Amplifier is a high-end vacuum tube power amplifier designed for music enthusiasts seeking substantial output power, sophisticated transformer engineering and the musical qualities of KT-series output valves.

Handcrafted in Hungary, the Qualiton P200 delivers 2 x 100 watts in stereo operation and can also function as a powerful 200-watt monoblock amplifier in Bridge Mode.

Featuring custom-designed toroidal output transformers, a specially engineered power transformer and Qualiton’s advanced Automatic Bias System, the P200 combines traditional vacuum tube amplification with modern operating convenience.

The amplifier is designed around KT-series power tubes, with KT120 supplied as standard and support for compatible KT90, KT150 and KT170 output tubes according to the manufacturer’s instructions.

Available from Chameleon Audio, the Qualiton P200 is an excellent choice for high-end stereo systems requiring a dedicated tube power amplifier with flexible balanced and unbalanced connectivity.

Reference Vacuum Tube Amplification from Audio Hungary

The Qualiton P200 belongs to the manufacturer’s Classic Series, developed around carefully engineered vacuum tube circuits and custom transformer technology.

Its design places particular emphasis on power supply stability, output transformer performance, controlled operating conditions and practical system integration.

Unlike an integrated amplifier, the P200 is a dedicated power amplifier intended for use with an external preamplifier or another suitable component providing volume control.

The combination of substantial output power and two operating modes makes the P200 particularly versatile within a high-end audio installation.

KT-Series Output Tubes

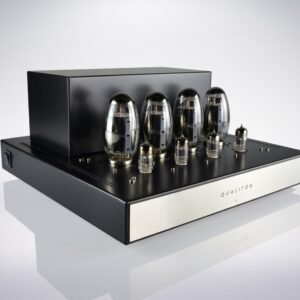

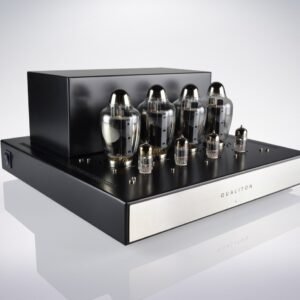

KT120, KT150 and KT170 Tube Compatibility

The Qualiton P200 output section is specifically designed around powerful KT-series beam tetrodes.

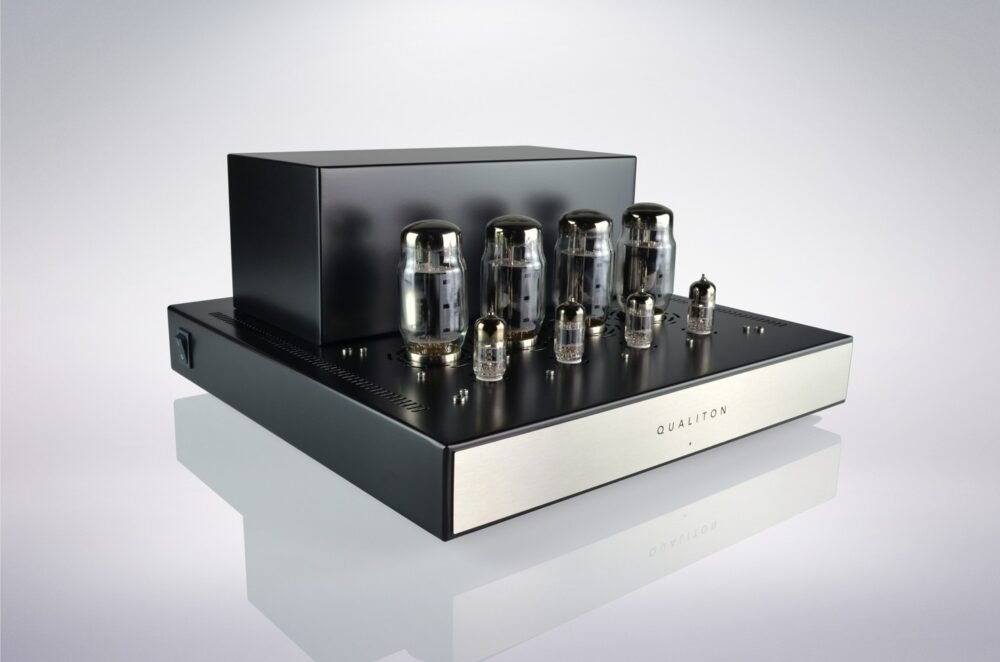

The standard configuration uses four KT120 output tubes, supported by two 6922 and two 12AX7 small-signal valves.

Thanks to the manufacturer’s Automatic Bias System, the amplifier can also accommodate approved KT90, KT150 and KT170 output tube configurations without requiring circuit modifications.

This provides flexibility for owners who wish to explore suitable tube configurations over the lifetime of the amplifier.

The correct tube type, matched output set and installation procedure should always follow Audio Hungary’s operating instructions.

Custom-Designed Toroidal Output Transformers

In-House Transformer Engineering

One of the most important technical features of the Qualiton P200 is its custom-designed output transformer architecture.

Audio Hungary manufactures its transformers in its own specialist transformer workshop, giving the company direct control over the design and production process.

The output transformers use large-cross-section, high-permeability toroidal magnetic cores and carefully arranged multilayer, sectional windings.

This construction is intended to support the required low-frequency and high-frequency performance while maintaining stable electrical behaviour.

The finished transformer assemblies are enclosed in metal shielding housings and potted with epoxy compound to help minimise mechanical vibrations and electromagnetic interference.

Custom Power Transformer

Power Supply Engineering for Demanding Tube Circuits

The P200’s power transformer is also custom-designed and manufactured by Audio Hungary.

Its high-permeability toroidal core and specially calculated winding arrangement are developed to provide the electrical operating conditions required by the amplifier.

The transformer includes double electromagnetic shielding to reduce unwanted coupling between the power supply and sensitive audio circuitry.

Epoxy potting further helps minimise mechanical noise and vibration.

This dedicated transformer design reflects Audio Hungary’s focus on integrating power supply and audio circuit performance within a single amplifier architecture.

Advanced Automatic Bias System

Automatic Tube Bias Monitoring and Adjustment

The QUALITON P200 incorporates an advanced Automatic Bias System that continuously monitors the operating conditions of the output valves.

The system adjusts tube bias voltages to help maintain the intended electrical operating points.

By controlling and balancing the quiescent currents of the output tubes, the circuit also helps prevent unwanted saturation of the sensitive output transformer cores.

A built-in soft-start function manages operating conditions during power-up and helps reduce unwanted switching noises.

With the approved tubes correctly installed, the system removes the need for routine manual bias adjustment during normal use.

Two Amplifiers in One: Stereo and Bridge Modes

One of the defining advantages of the Qualiton P200 Power Amplifier is its ability to operate in two different configurations.

In Stereo Mode, it operates as a conventional two-channel amplifier.

In Bridge Mode, it becomes a dedicated monoblock amplifier, concentrating its output into a single loudspeaker channel.

This flexibility allows owners to build either a traditional stereo power amplifier system or a system using two P200 amplifiers as bridged monoblocks.

Stereo Mode: 2 x 100 Watts

Powerful Stereo Vacuum Tube Amplification

In Stereo Mode, the Qualiton P200 operates as a conventional two-channel tube power amplifier.

It delivers a maximum rated output of 100 watts per channel and supports compatible loudspeakers with nominal 4-ohm or 8-ohm impedance.

The amplifier provides balanced and unbalanced stereo signal inputs, allowing connection to a suitable external preamplifier.

The published frequency response in this operating mode is 18Hz to 60kHz (-3dB at rated output).

This substantial power output makes the P200 suitable for consideration with a wide range of high-end loudspeakers, subject to their sensitivity and impedance characteristics.

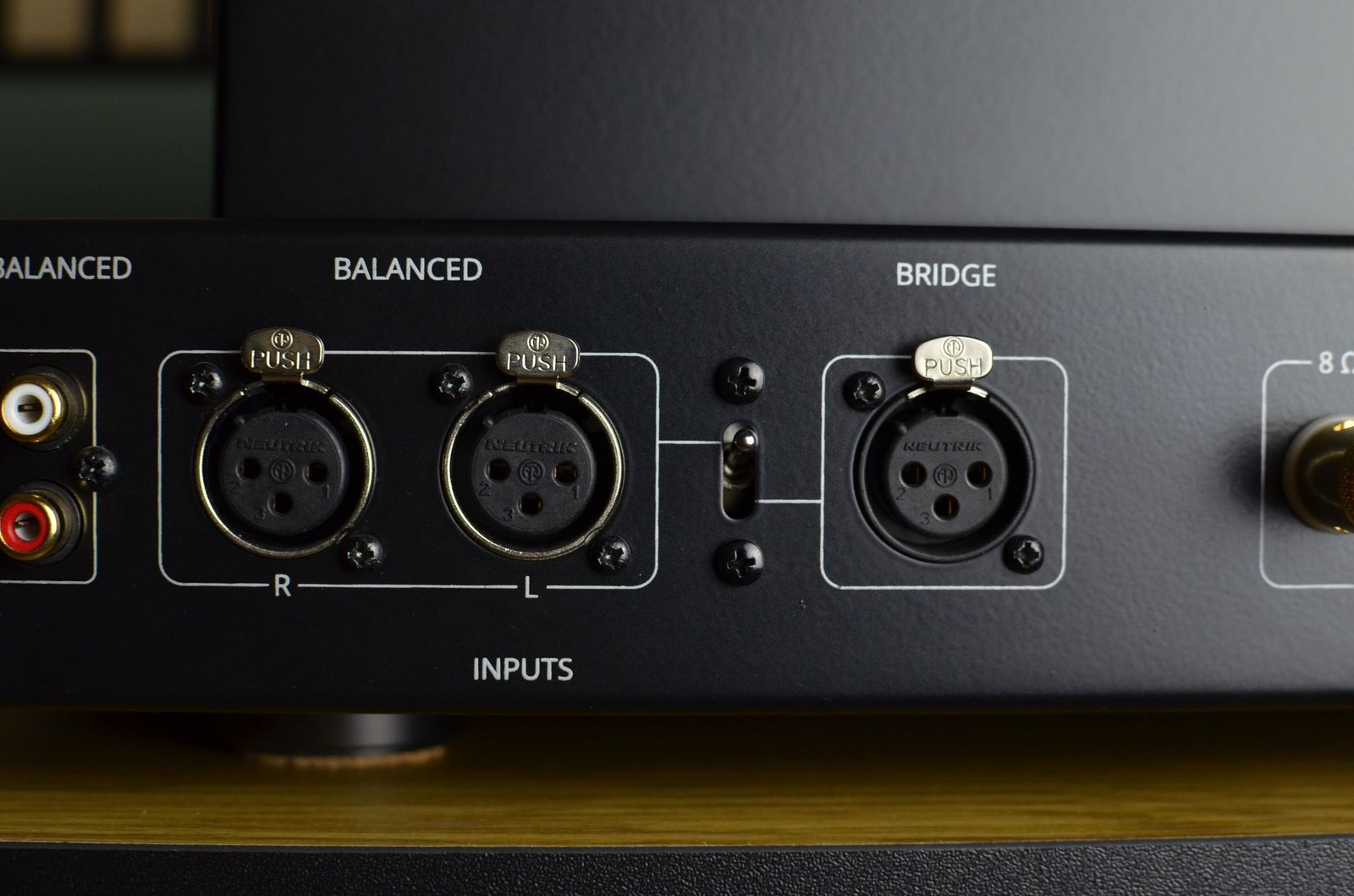

Bridge Mode: 200-Watt Monoblock Operation

Transform the P200 into a Monoblock Power Amplifier

The P200 can be configured as a bridged monoblock amplifier delivering 1 x 200 watts into an 8-ohm loudspeaker.

In Bridge Mode, the amplifier’s two internal channels are driven by a balanced monaural input signal.

Its output connections are reconfigured according to the manufacturer’s Bridge Mode instructions.

For a complete two-channel system in bridged operation, two P200 amplifiers are required, one for each loudspeaker.

Important: Bridge Mode requires an appropriate balanced input signal and an 8-ohm loudspeaker load. Connections must follow the manufacturer’s manual precisely.

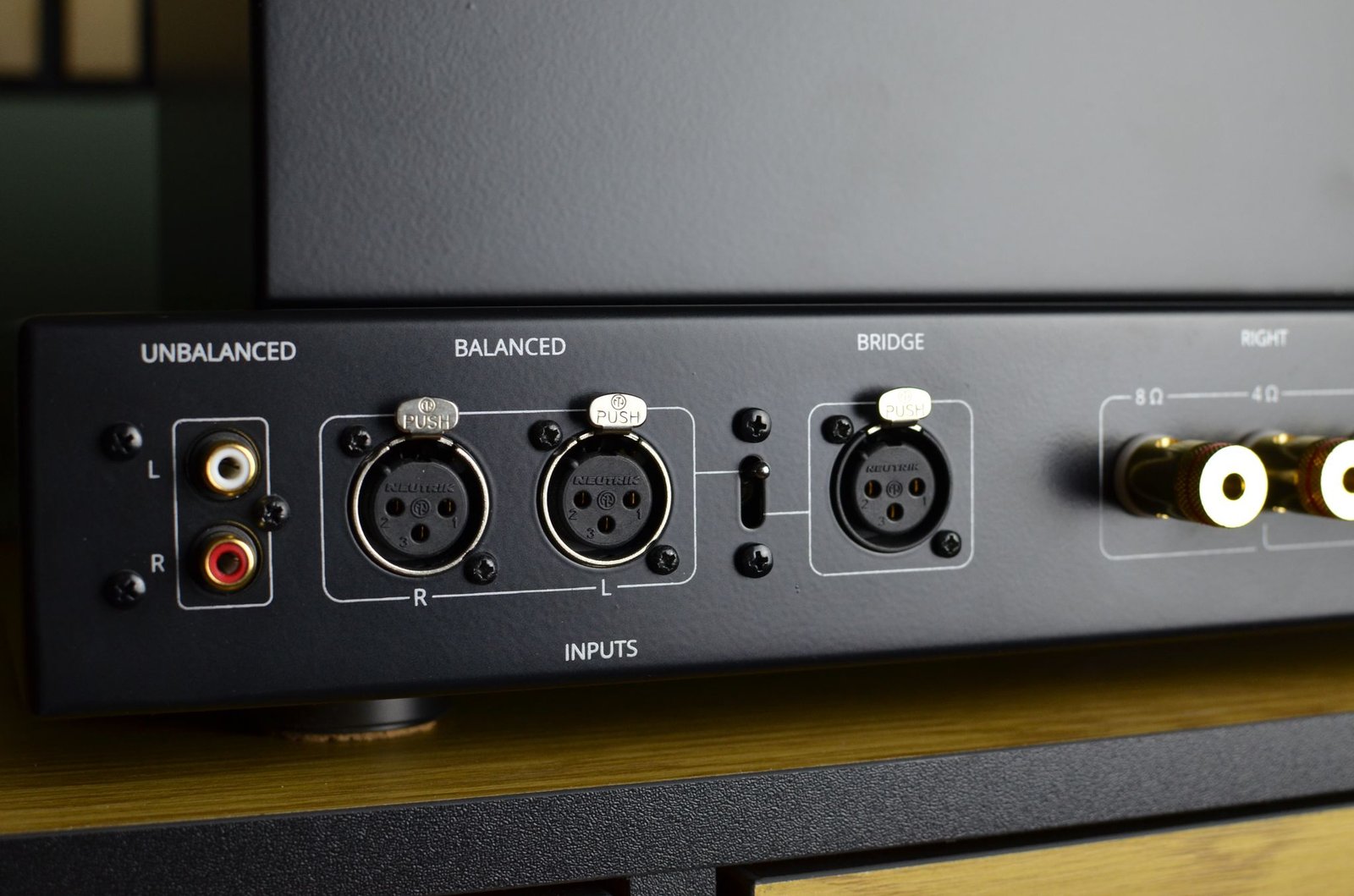

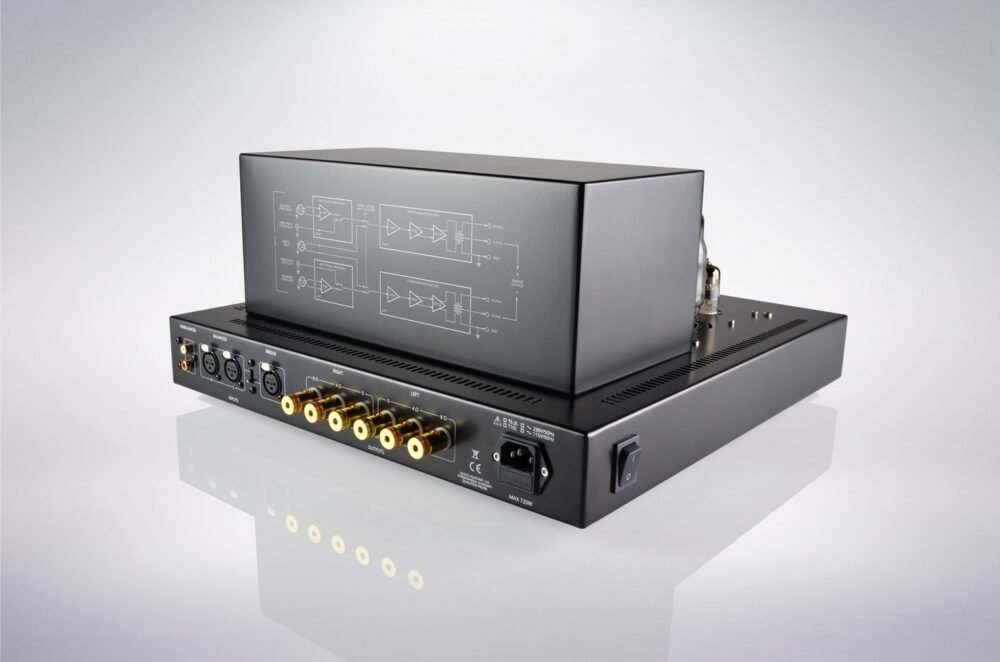

Balanced and Unbalanced Input Connectivity

Flexible Input Signal Processing

In Stereo Mode, the P200 accepts either a balanced stereo signal or an unbalanced stereo signal.

These two stereo input arrangements are not intended to be used as simultaneous independent sources.

If both the balanced and unbalanced stereo inputs are connected, the amplifier’s internal control logic gives priority to the balanced input.

In Bridge Mode, a dedicated balanced mono input feeds the bridged amplifier configuration.

Correct source selection and speaker terminal configuration are essential when changing between Stereo and Bridge Modes.

Premium Electronic Components

Carefully Selected Vacuum Tubes and Components

Audio Hungary selects electronic components for the P200 with attention to electrical performance, longevity and operational consistency.

• Matched sets of KT-series output tubes
• Selected small-signal vacuum tubes

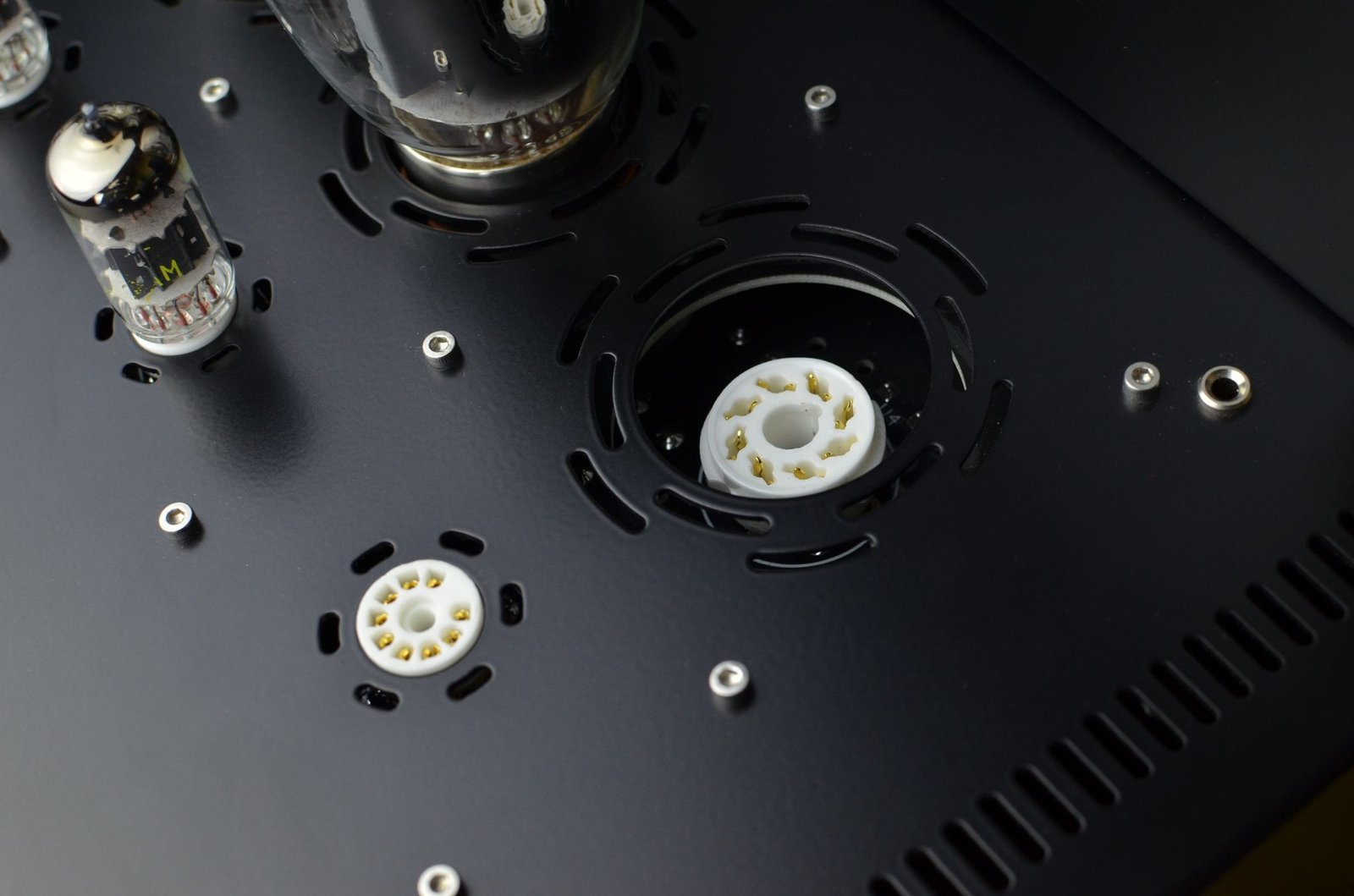

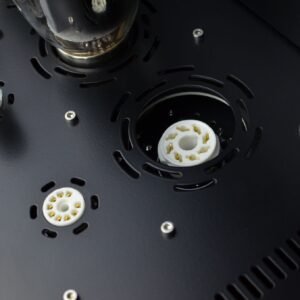

• Gold-plated ceramic tube sockets
• Gold-plated audio terminals
• Film capacitors in audio circuits
• Selected ceramic composition resistors
• Long-life, high-temperature power supply capacitors

The standard P200 tube complement includes four KT120 output tubes, two 6922 valves and two 12AX7 valves.

These design choices support the manufacturer’s commitment to high-quality vacuum tube amplification.

Elegant Classic Series Design

The QUALITON P200 follows Audio Hungary’s understated Classic Series design language.

The amplifier combines a robust metal chassis, carefully arranged vacuum tubes and a clean mechanical layout.

The substantial 26kg construction reflects the importance of the large transformers and power supply sections within this dedicated tube power amplifier.

Its restrained visual design allows it to integrate naturally into high-end listening rooms.

Pairing the Qualiton P200 with a Preamplifier

The P200 is a dedicated power amplifier and should be used with a suitable preamplifier providing source selection and volume control.

For a complete system from the same manufacturer, consider the Audio Hungary QUALITON C200 Vacuum Tube Preamplifier.

The C200 provides multiple analogue inputs, balanced and unbalanced outputs, an integrated MM phono stage and remote-controlled volume adjustment.

Matching the C200 with the P200 creates a complete Qualiton preamplifier and power amplifier system designed around the manufacturer’s vacuum tube engineering philosophy.

Qualiton P200 Key Features

• High-end vacuum tube stereo power amplifier
• 100 watts per channel in Stereo Mode
• 200 watts in bridged monoblock operation
• Four KT120 output tubes as standard
• Optional compatible KT90, KT150 and KT170 tube operation
• Two 6922 and two 12AX7 small-signal tubes
• Automatic Bias System
• Integrated soft-start operation
• Custom toroidal output transformers
• Custom power transformer with double electromagnetic shielding
• Balanced and unbalanced stereo inputs
• Dedicated balanced Bridge Mode input

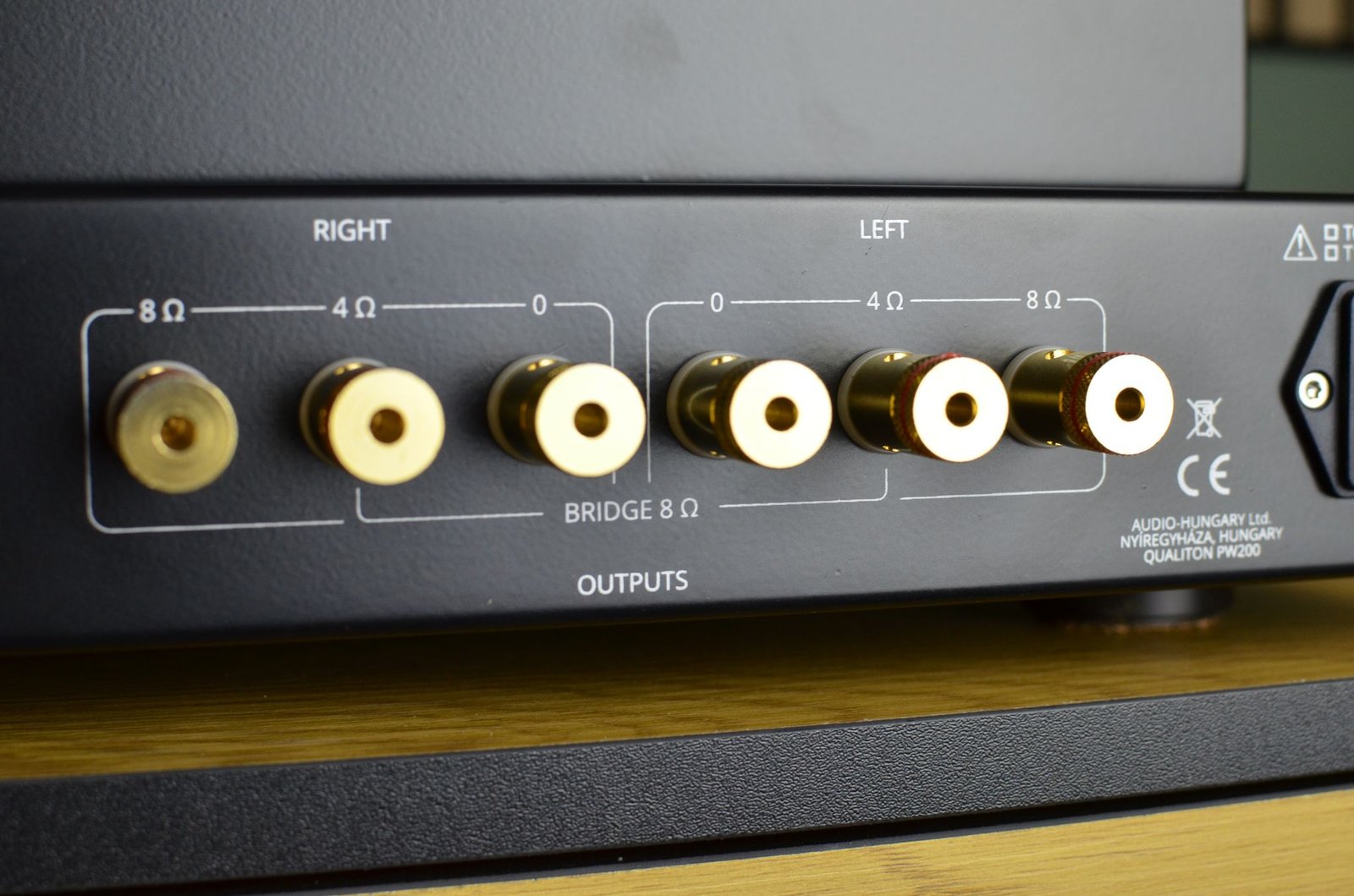

• 4-ohm and 8-ohm loudspeaker compatibility in Stereo Mode
• 8-ohm speaker load in Bridge Mode
• Premium electronic components and gold-plated terminals
• 26kg chassis construction
• Handcrafted in Hungary

Audio Hungary Qualiton P200 Technical Specifications

Technical specifications are based on manufacturer information. Output figures and distortion specifications differ between Stereo and Bridge Modes.

Download the Qualiton P200 User Manual

For operating instructions, tube installation, speaker connections and correct Stereo/Bridge Mode configuration, download the Qualiton P200 User Manual.

Why Buy from Chameleon Audio?

At Chameleon Audio, we combine specialist high-end audio knowledge with competitive pricing, carefully selected equipment and personalised customer service.

Free Worldwide Shipping with Full Transport Insurance

All brand-new products purchased from Chameleon Audio include FREE SHIPPING WITH FULL TRANSPORT INSURANCE.

Your new high-end audio equipment is carefully packed and insured during transportation, giving you additional peace of mind when purchasing from Chameleon Audio.

Best Price Guarantee – Extra 10% Below

Found the same brand-new product at a lower price elsewhere?

Show us a verifiable lower-priced offer for the identical product, and Chameleon Audio will offer it at 10% BELOW that verified competitor price.

Simply contact us with the competing offer and supporting evidence. Once the identical product and lower price have been verified, we will prepare your personalised quotation.

Premium Hi-Fi. Free Insured Shipping. Exceptional Value.

Frequently Asked Questions

What is the Audio Hungary Qualiton P200?

The Qualiton P200 is a high-end vacuum tube power amplifier offering 100 watts per channel in Stereo Mode and 200 watts in bridged monoblock operation.

How much power does the Qualiton P200 produce?

The amplifier delivers 2 x 100 watts in Stereo Mode or 1 x 200 watts in Bridge Mode.

Which vacuum tubes does the P200 use?

The standard tube complement consists of four KT120 power tubes, two 6922 tubes and two 12AX7 tubes.

Can the Qualiton P200 use KT150 or KT170 tubes?

Yes. Audio Hungary specifies compatibility with approved KT150 and KT170 configurations, as well as KT90 and KT120 tubes, using its Automatic Bias System.

Does the Qualiton P200 require manual bias adjustment?

No routine manual bias adjustment is required when the amplifier is operating with an approved, correctly installed tube configuration.

What is Stereo Mode?

In Stereo Mode, the amplifier drives two loudspeaker channels with up to 100 watts per channel and supports compatible 4-ohm or 8-ohm speakers.

What is Bridge Mode?

Bridge Mode combines the amplifier’s two channels into one 200-watt monoblock configuration for an 8-ohm loudspeaker.

Can I use two Qualiton P200 amplifiers as monoblocks?

Yes. Two P200 amplifiers can be configured in Bridge Mode, with one unit dedicated to each loudspeaker.

Does Bridge Mode require a balanced input?

Yes. The manufacturer specifies a balanced monaural input for bridged operation.

Can I use balanced and unbalanced inputs in Stereo Mode?

Yes, but not as simultaneous independent sources. When both are connected, the amplifier prioritises the balanced stereo input.

Does the P200 include a preamplifier or volume control?

The P200 is a dedicated power amplifier. A suitable external preamplifier or properly configured source with volume control is required.

Is the Qualiton C200 a suitable matching preamplifier?

The C200 is a logical matching option from the Qualiton Classic Series, providing analogue input selection and volume control.

What is the P200 frequency response?

The published frequency response is 18Hz to 60kHz in Stereo Mode and 20Hz to 55kHz in Bridge Mode, both specified at -3dB and rated output.

How heavy is the Qualiton P200?

The manufacturer’s published weight is 26kg.

Where can I buy the Qualiton P200 Power Amplifier?

Chameleon Audio offers the Audio Hungary Qualiton P200 with assistance on preamplifier matching, loudspeaker compatibility and international ordering.

Explore Qualiton at Chameleon Audio

For a matching vacuum tube preamplifier, discover the Qualiton C200 Preamplifier.

For an alternative all-in-one amplification solution, explore the Qualiton X200 Integrated Amplifier.

Discover more Audio Hungary Qualiton products at Chameleon Audio.

For official technical information, visit the Qualiton P200 Manufacturer Product Page.

Audio Hungary Qualiton P200 at Chameleon Audio

The Audio Hungary QUALITON P200 Classic Power Amplifier combines powerful KT-series vacuum tube amplification, custom-built toroidal transformers, automatic output tube bias control and exceptional system flexibility.

Whether used as a 100-watt-per-channel stereo amplifier or a 200-watt bridged monoblock, the P200 offers a sophisticated solution for high-end audio systems built around carefully matched components.
