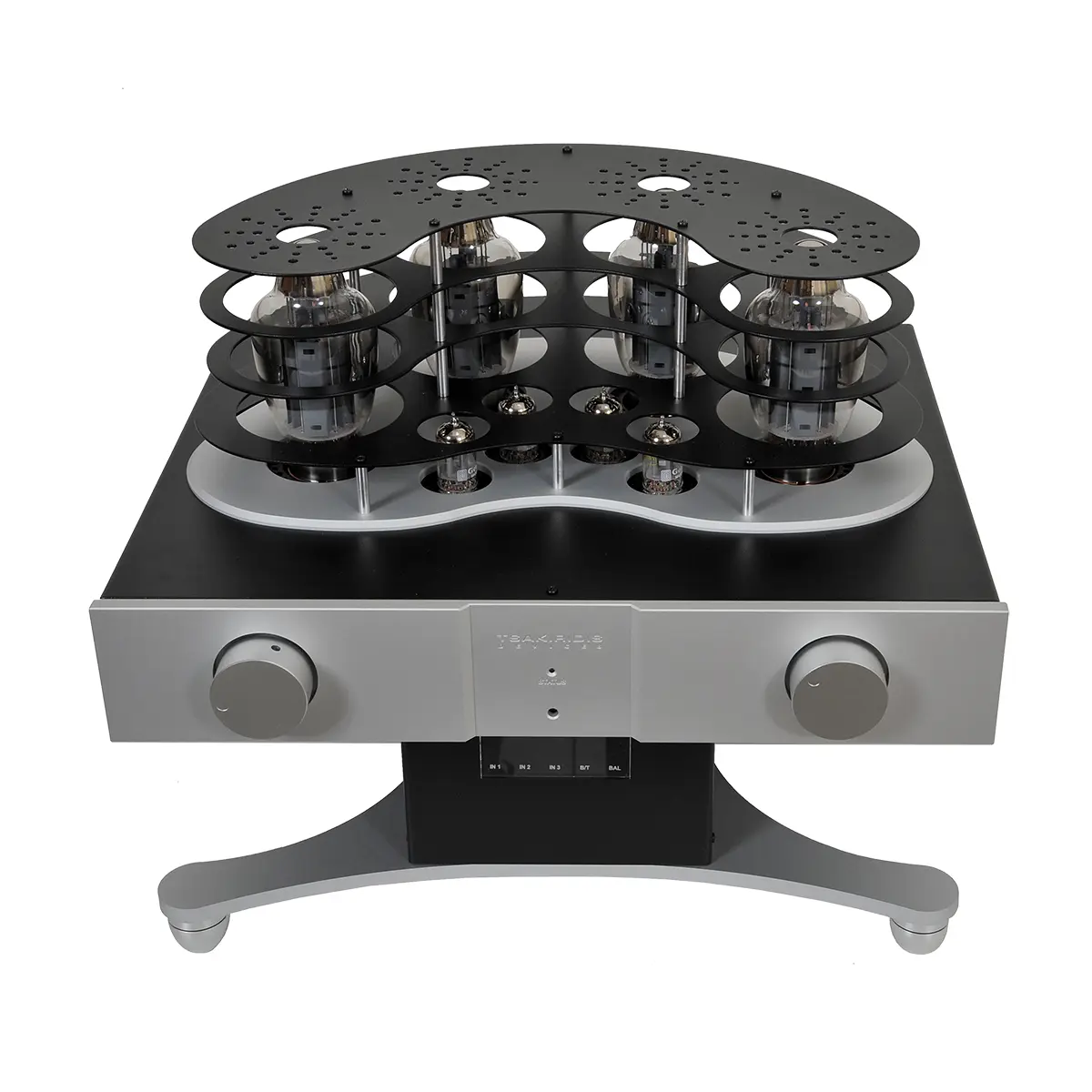

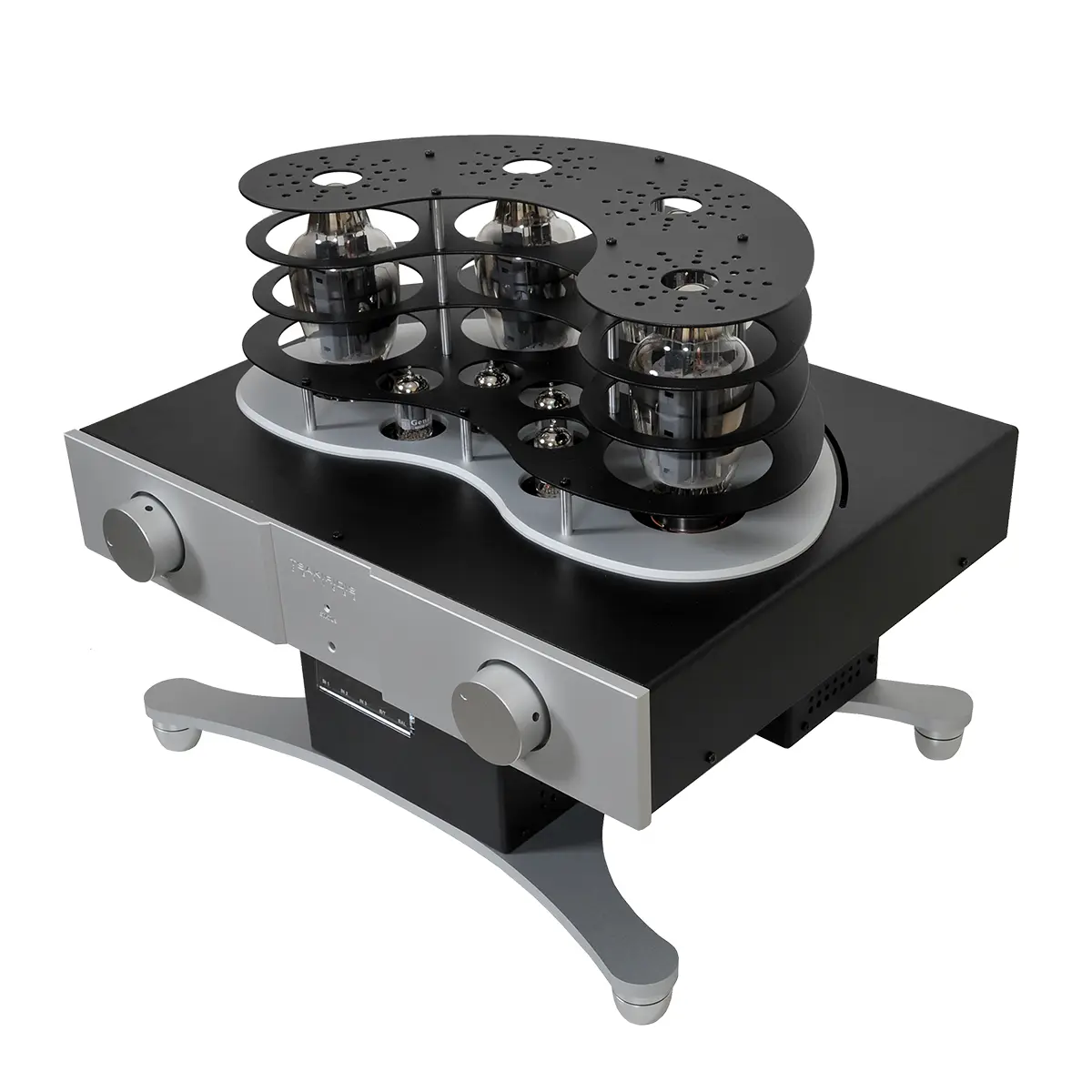

Tsakiridis Devices Reference Amplifier

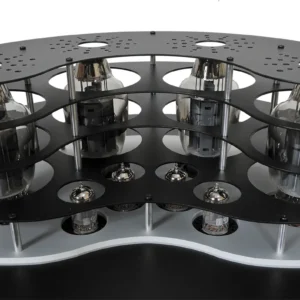

Utilizing two KT170 tubes, Reference amplifier can deliver up to 100W of power per channel, allowing it to drive any loudspeaker efficiently. Very high quality electronic components are implemented to achieve superior high-end sound quality. Low tolerance, high frequency, non-inductive, ultra low noise resistors are used in all stages. Premium quality oil capacitors (Mundorf Supreme Silver Gold Oil – Rike Ausdio QCap4 Copper Oil) are used for the signal. Self biasing configuration with chassis mount non-inductive low tolerance heatsink resistors.

All electronic components are through hole type of the highest quality silver soldered by hand.

Reference amplifier utilizes our top of the line 16 layer handmade output transformers with high quality copper wire and core material for superior sound quality.

Premium quality signal tubes are used in the driving stage.

Gold plated RCA and XLR connectors for the inputs/outputs. WBT-0710 Next Gen loudspeaker binding posts.

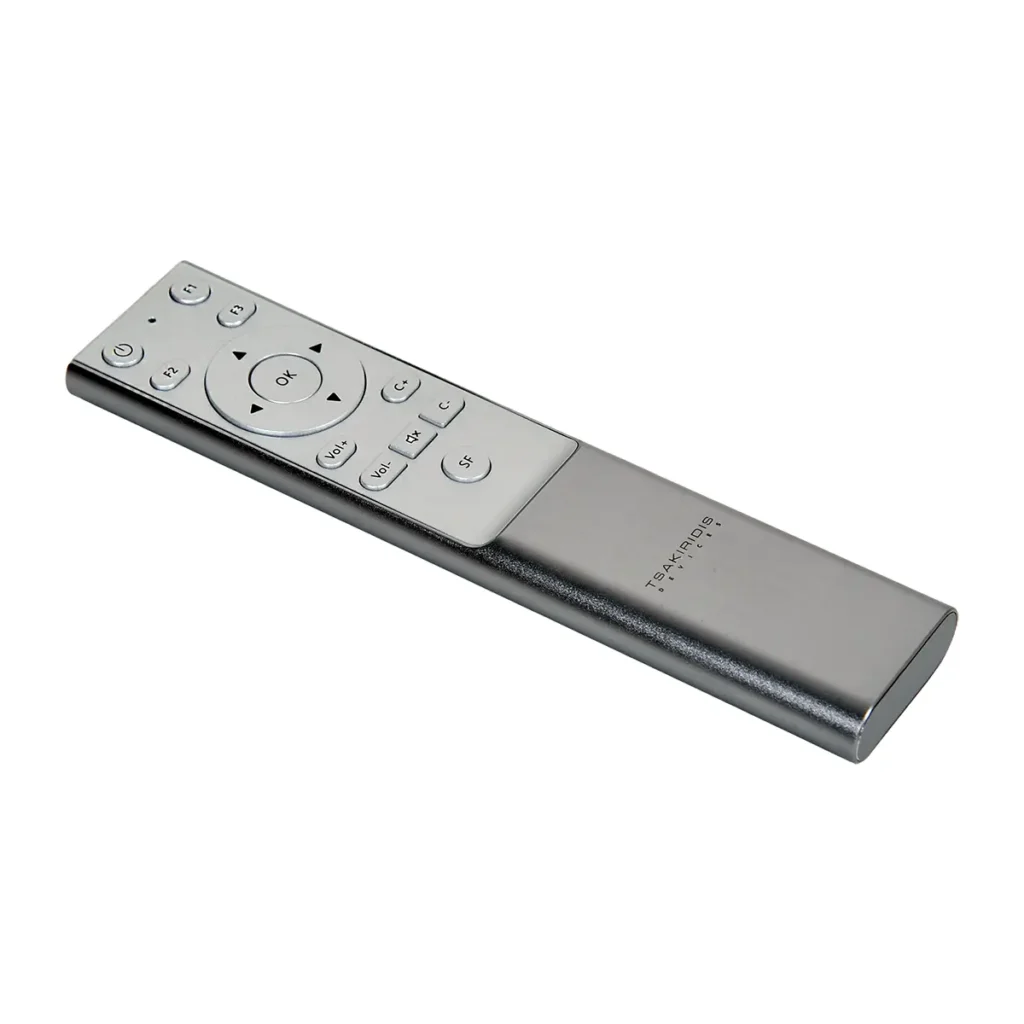

An elegant remote control in aluminum case offers you control over all the functions of Reference integrated amplifier. Volume control, input selection, mute, LED illumination level and stand by mode.

Reference amplifier provides a balanced input and three single ended line inputs.
A master loop allows you to connect an external circuit such as room correction, equalizer etc. For the volume control the classic blue Alps is utilized.

All stages are on separate PCBs to achieve maximum isolation.
The PCB design offers very high SNR, low distortion and high channel separation. All electronics are in a separate compartment, shielded from the power transformer. Also the output transformers are in their own separate shielded compartment as is and the power transformer. All these contribute to the unique appearance of Reference integrated amplifier.

Reference amplifier is equipped with a surveillance circuit which monitors the current of each power tube. If a problem is spotted with any tube, the amplifier will not start and the status LED in the front panel will blink red accordingly with the faulty tube. In this way no damage can be caused to the amplifier by a malfunctioning tube and will show you which tube to replace.
