Tsakiridis Devices Daedalus Tube Meter / Tester

Name: Tsakiridis Devices Daedalus Tube Meter / Tester
Brand: Tsakiridis Devices
SKU: 98917
Price: 1760.00 EUR
Availability: InStock

SKU: 98917 Category: Miscellaneous / Accessories Availability: 15 days

1.760,00 €

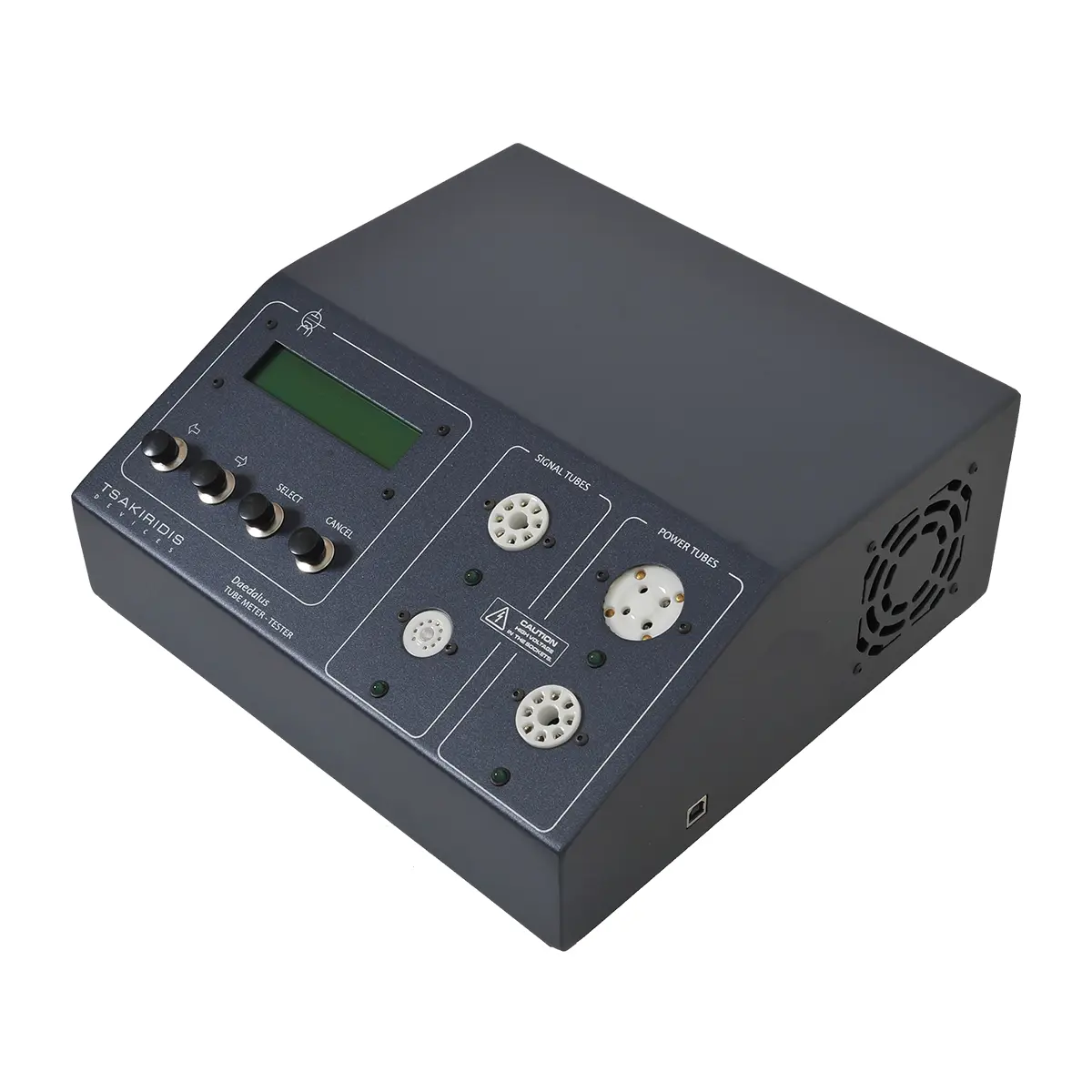

The Daedalus of Tsakiridis Devices is a tube meter/tester. With this device you can test line and power tubes. It tests the tube filaments, anode and cathode over current, current leakage and measures gm in five different operating points of the tube.

Available on backorder

Add to wishlist

Feel Safe Paying With

Excluding speakers & certain second hand items we offer:

Free Shipping in Greece for orders over 100€!
Free Shipping in Europe for orders over 1000€!
Free Shipping Worldwide for orders over 3000€!
Buy NOW with up to 24 Interest-Free Installments! (All Products are Eligible)

Description

Daedalus helps you to find out if a tube is worn out, or can cause
damage to the device you intended to use it.
With Daedalus you can easily match your tubes.
The whole process is fully automated and it is very easy to use.
At the end of each test there is a full report for the results.

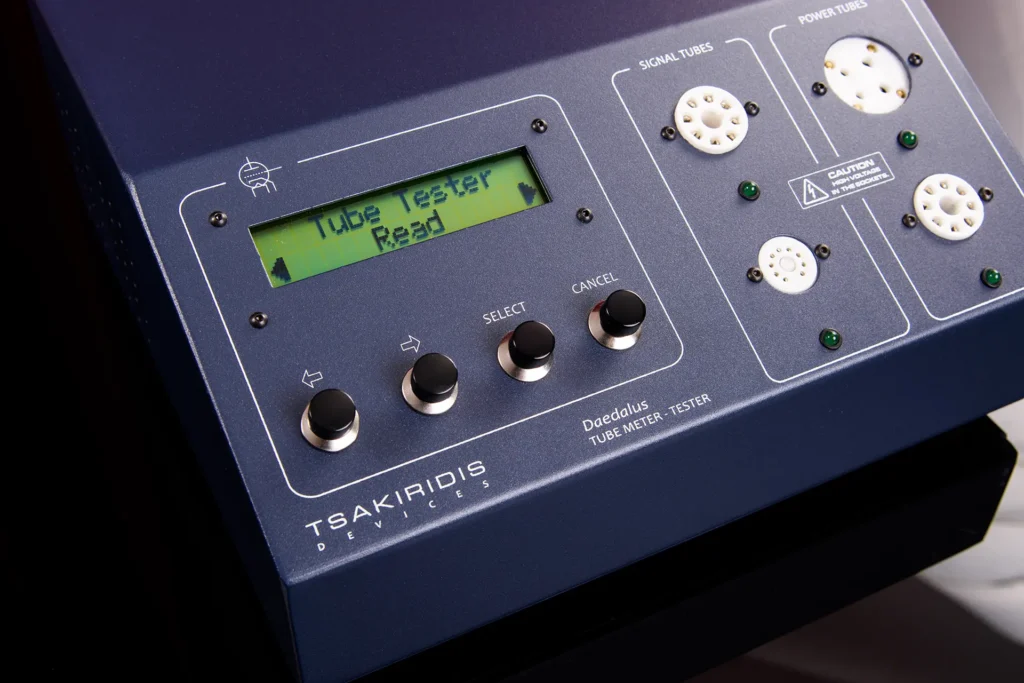

daedalus 2 tsakiridis devices 1024x683 1

Daedalus has a large library of tubes which is continuously updated.
The software updates are easily loaded through the USB port located
on the side of Daedalus.
Tube adaptors are provided by Tsakiridis – devices for tubes that don’t
match directly the tube bases on Daedalus.

There is a software development that will give you the ability to draw the characteristics of each tube on your PC.
Daedalus is a very useful and powerful tool for all tube enthusiasts.

Tube Evaluation Procedures

Transconductance Measurement:

The tube tester measures the transconductance of the tube on specific points of the datasheet curve as it is given on the manufacturer datasheet.
Filament Condition:

The filaments are tested for open circuit and the voltage / current draw by them is monitored and evaluated.
Anode Condition:

The tube tester checks for short circuits between the anode and the grid. The tube is checked for any leakage current between the anode and the cathode.
