Tsakiridis Devices Achilles Monoblock Power Amplifier

Description

Achilles is a small monoblock class A triode amplifier with superior sound performance.

It needs a sensitive speaker as a load but it will amaze you with its performance.

A beautiful small size amplifier for many relaxing music hours.

Features

Achilles, Power Amplifier, 2 x 8 Watt, (2 x 300B / 2 x 2A3, 2 x 6SL7, 2 x 6L6).

• Monoblock Construction.
• Triode Class A Operation.
• Zero Feedback.
• Matched Input & Output Tubes Between Channels.
• Switchable Operation 300B / 2A3.
• Hand Wired Construction.
• Power Supply Capacitors United Chemicon.
• Porcelain Tube Bases.
• Hand Made Ultralinear Multi Layer Output Transformers.
• Toroidal Power Transformers.
• High Grade Polypropylene Signal Capacitors.
• Metal Film Resistors with Low Tolerance 1%.
• Custom Gold Plated Input Connectors.
• WBT Next Gen Output Connectors WBT.
• Five Years Guarantee.

Achilles Ultra

Why Ultra?

The 8W of power per channel of Achilles requires high sensitivity loudspeakers to enjoy your music. The triode class A configuration of the 300B with the high linearity of the preamplification stage offer an unsurpassed audio experience to every audiophile.
Gold plated RCA connectors are implemented for the signal input and WBT-0703 Next Gen binding posts for the loudspeakers.
Carefully selected values and types of the electronic components contribute to the reliable circuits operation and the high sound quality of the amplifier. Mundorf Evo signal capacitors are used in Achilles Ultra.

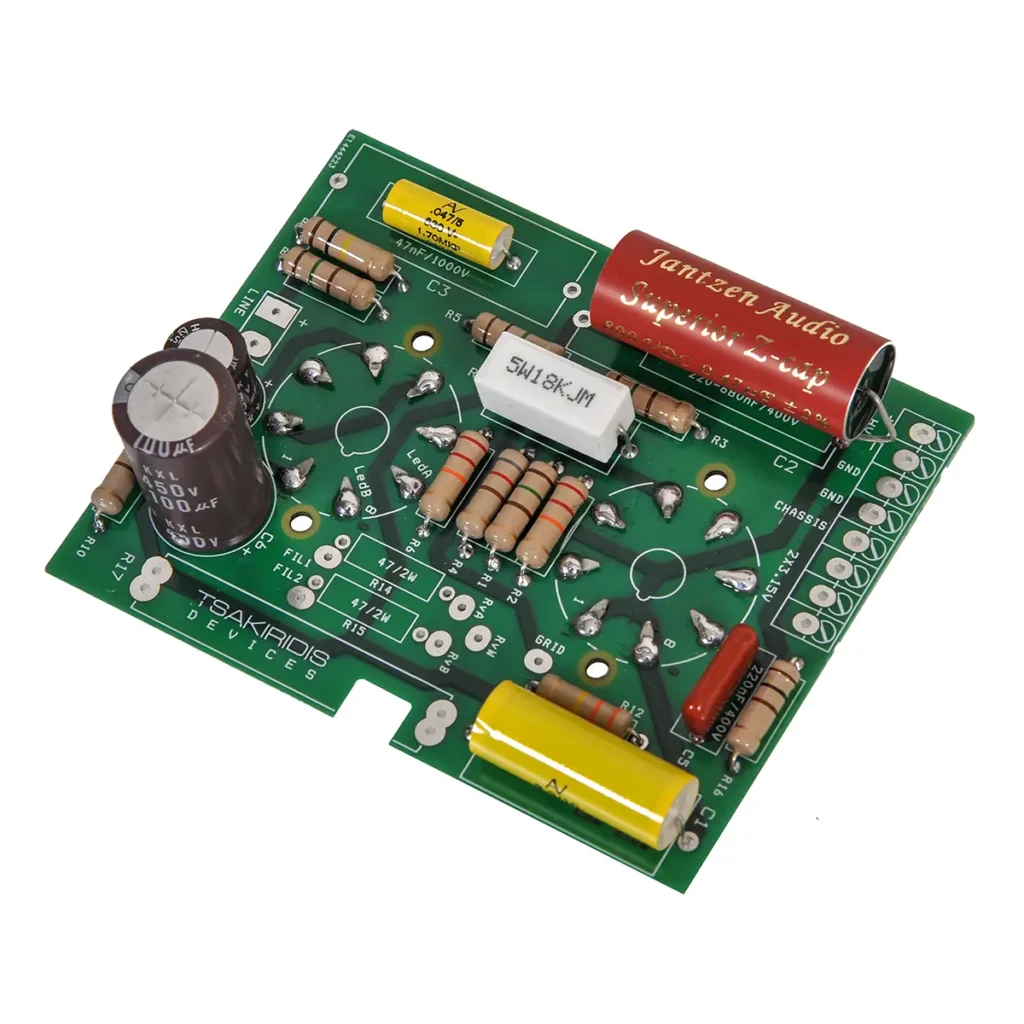

The meticulous PCB design ensures excellent behavior in SNR and distortion.
Inner signal wiring with high quality shielded signal cable. Power wiring uses high quality copper cables of more-than-needed AWG gauge, to achieve low impedance power transfer. All power cables are twisted in pairs to minimize the electromagnetic interference.

The handmade multilayer output transformers allow the amplifier to reveal the sound stage and all the music details through the entire audio spectrum.
Made by us and tested thoroughly for quality and reliability.

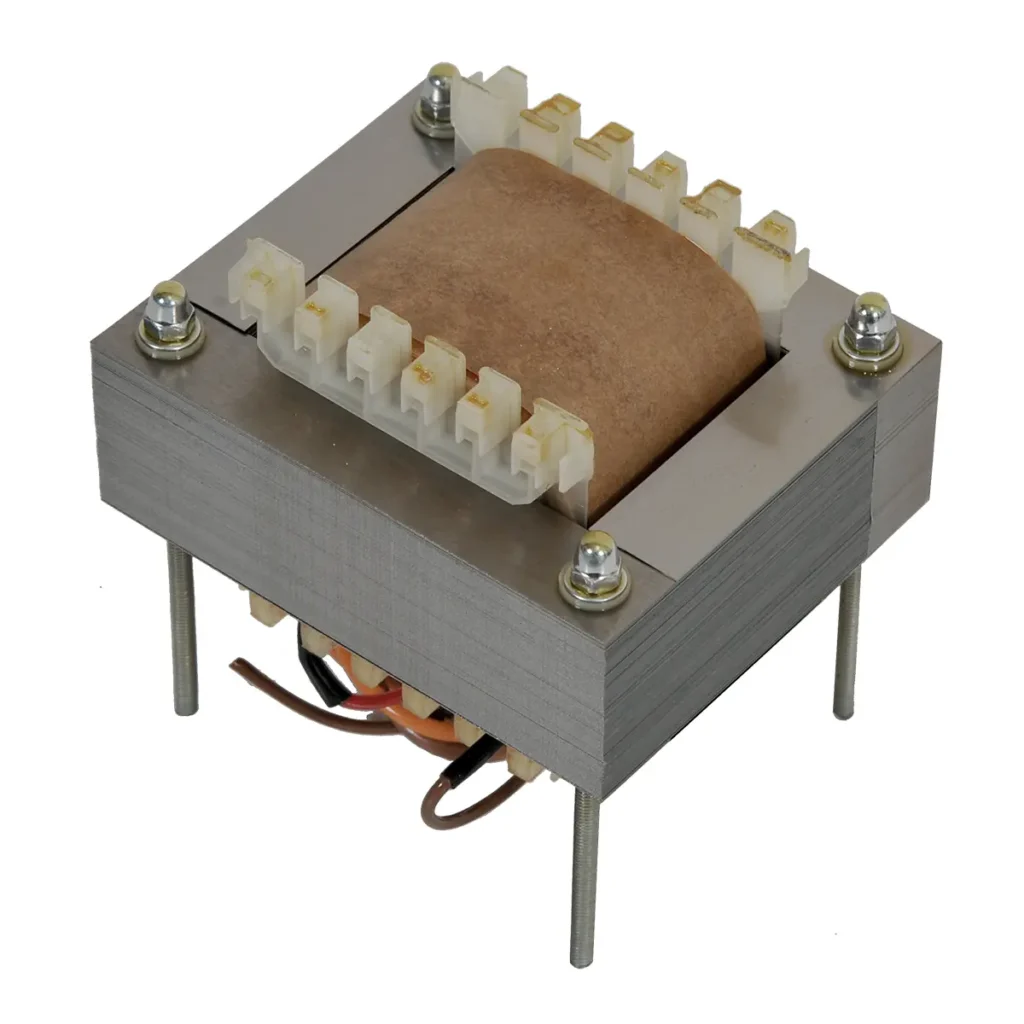

The same applies to the power transformer. The positioning of the transformers is such that minimizes the magnetic coupling between power and output transformers.

Achilles Ultima

• Mundorf supreme silver gold oil signal capacitors.
• High quality cathode and grid resistors.
• Silver soldered.
• 16 layer output transformers.
• WBT-0710 nextgen speaker connectors.

Why Ultima?

The 8W of power per channel of Achilles requires high sensitivity loudspeakers to enjoy your music. The triode class A configuration of the 300B with the high linearity of the preamplification stage offer an unsurpassed audio experience to every audiophile.
Gold plated RCA connectors are implemented for the signal input and WBT-710 Next Gen binding posts for the loudspeakers.
Carefully selected values and types of the electronic components contribute to the reliable circuits operation and the high sound quality of the amplifier. Mundorf Evo signal capacitors and premium quality tubes are used in Achilles Ultima.

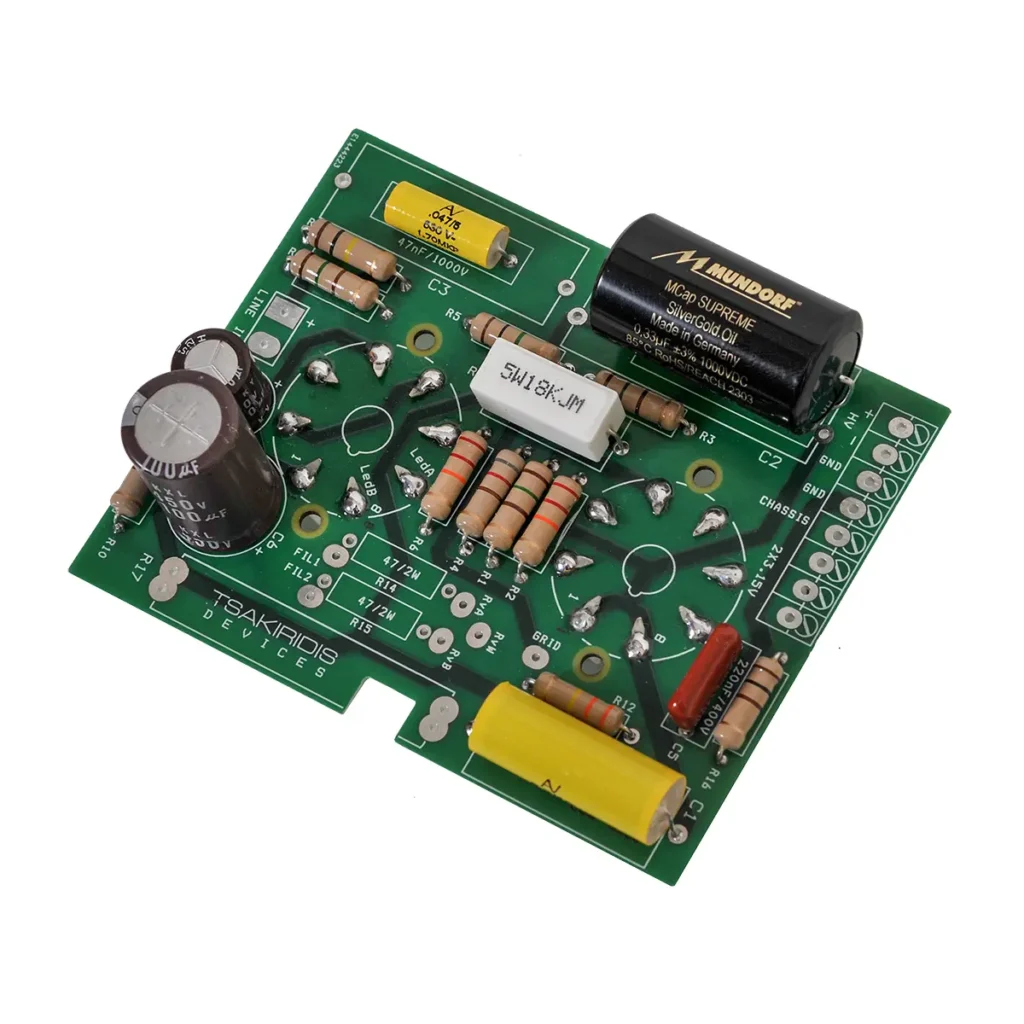

The meticulous PCB design ensures excellent behavior in SNR and distortion.
Inner signal wiring with high quality shielded signal cable. Power wiring uses high quality copper cables of more-than-needed AWG gauge, to achieve low impedance power transfer. All power cables are twisted in pairs to minimize the electromagnetic interference.

The handmade 16 layer output transformers with high quality copper wire and core material enable the amplifier to reveal an excellent sound stage and the slightest music details through the entire audio spectrum to give you a unique audio experience.
Made by us and tested thoroughly for quality and reliability.
The same applies to the power transformer. The positioning of the transformers is such that minimizes the magnetic coupling between power and output transformers.
